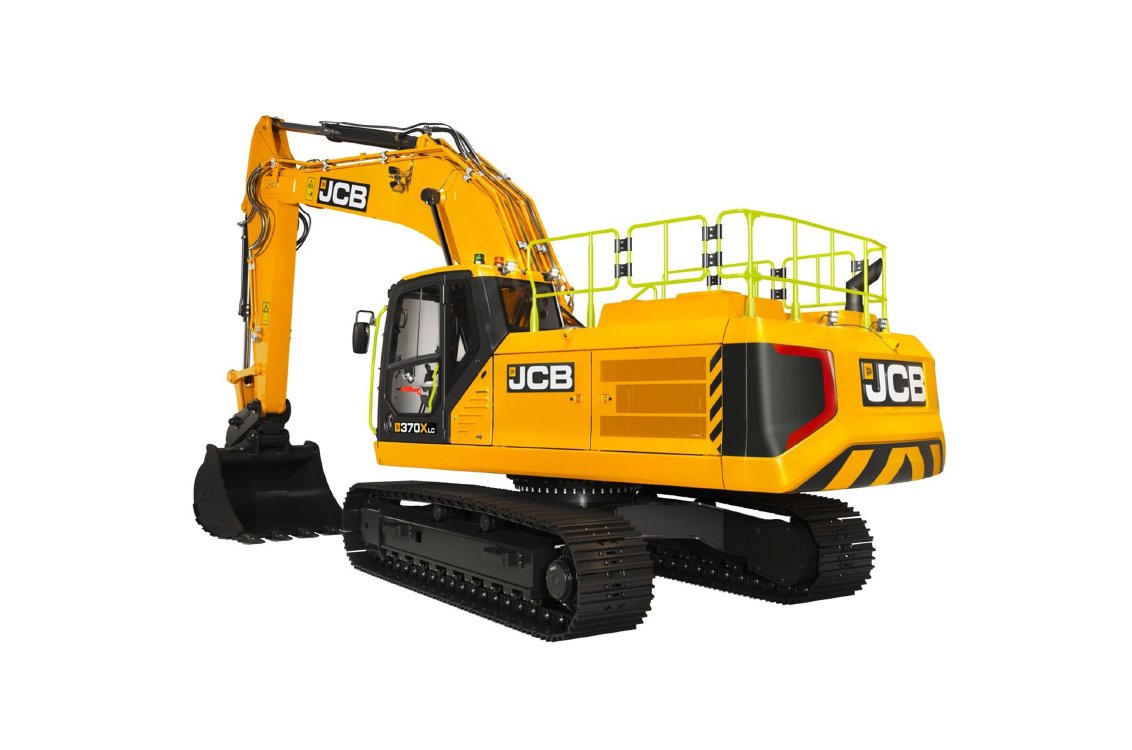

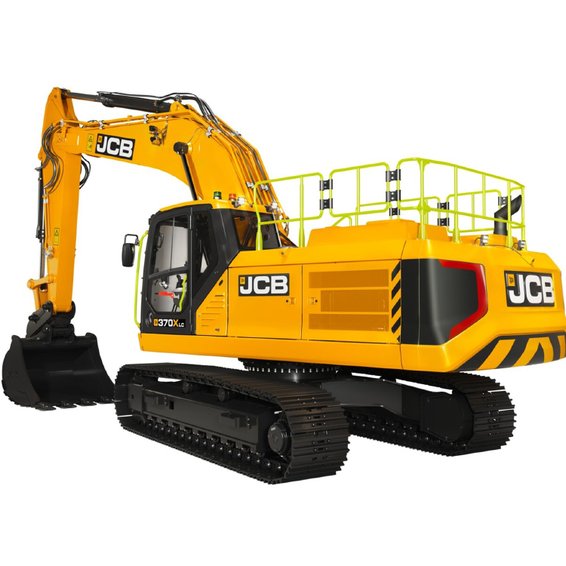

JCB 370X Crawler Excavator
Take on the most demanding earthmoving projects with the heavy-duty JCB 370X crawler excavator. Powered by a robust 322-horsepower Cummins L9 engine and weighing up to 87,417 pounds, this machine delivers the extreme strength and stability required for high-volume extraction.
Accelerate your cycle times with an enhanced hydraulic system that pushes 160 gallons per minute of main pump flow. Generating an immense 56,067 pounds of bucket breakout force and a maximum digging depth of up to 330 inches, the 370X easily powers through compacted materials to maximize your daily productivity.
Specifications
| Operator Protection | ROPS Cabin |
| Operating Weight | 87417.0 lbs |
| Tail Swing Radius | 142.0 in |
| Overall Width | 126.0 in |
| Overall Height | 127.0 in |
| Overall Length | 446.0 in |
| Horsepower | 322.0 hp |
| Engine Make & Model | Cummins L9 |
| Emissions Tier | Tier 4 Final / Stage IV / Stage V |
| Fuel Tank Capacity | 156.0 gal |
| Arm Length (standard) | 127.1 in |
| Max Digging Depth | 330.0 in |
| Max Reach at Ground Level | 438.0 in |
| Max Dumping Height | 274.0 in |
| Bucket Breakout Force | 56067.0 lbf |
| Stick Digging Force | 41725.0 lbs |
| Max Main Pump Flow | 160 (2 x 80) gal/min |
| Track Shoe Width | 23.6 in |
| Ground Pressure | 11.2 psi |
