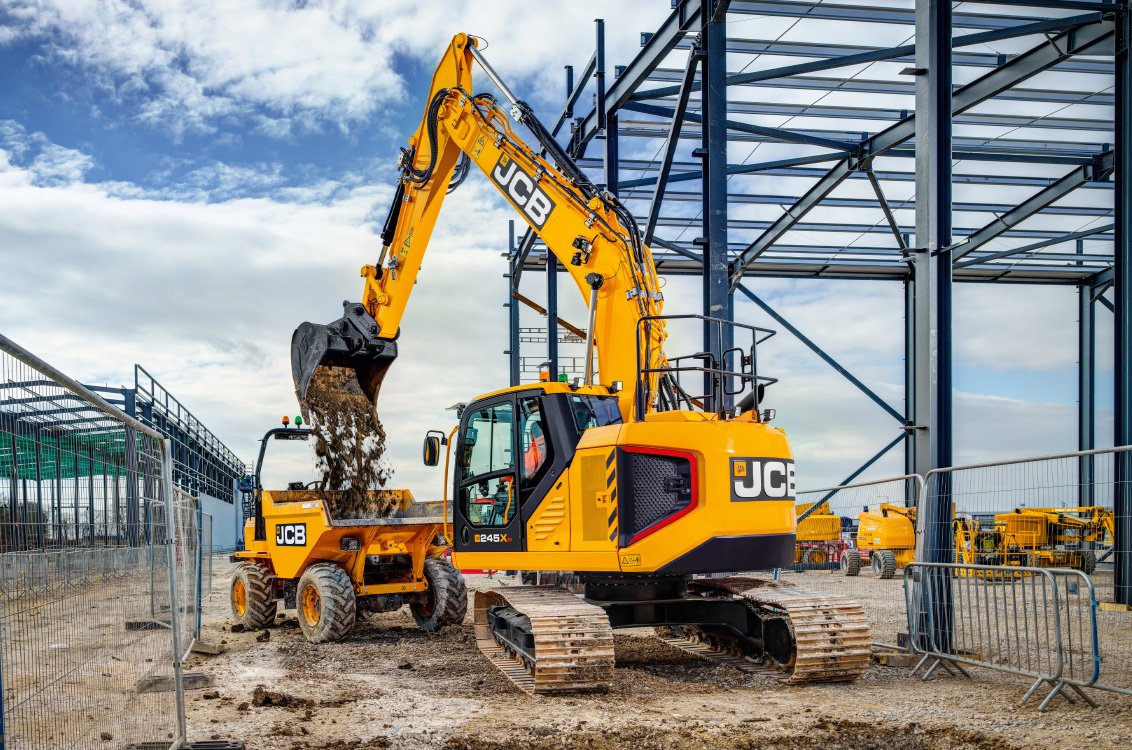

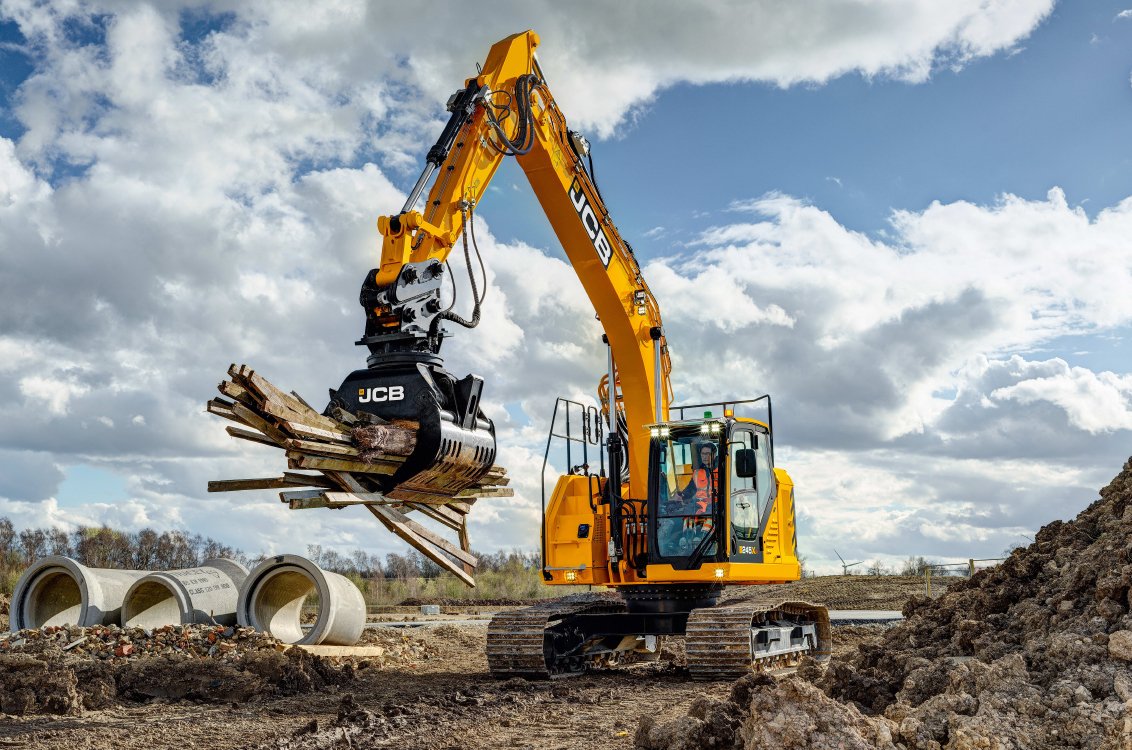

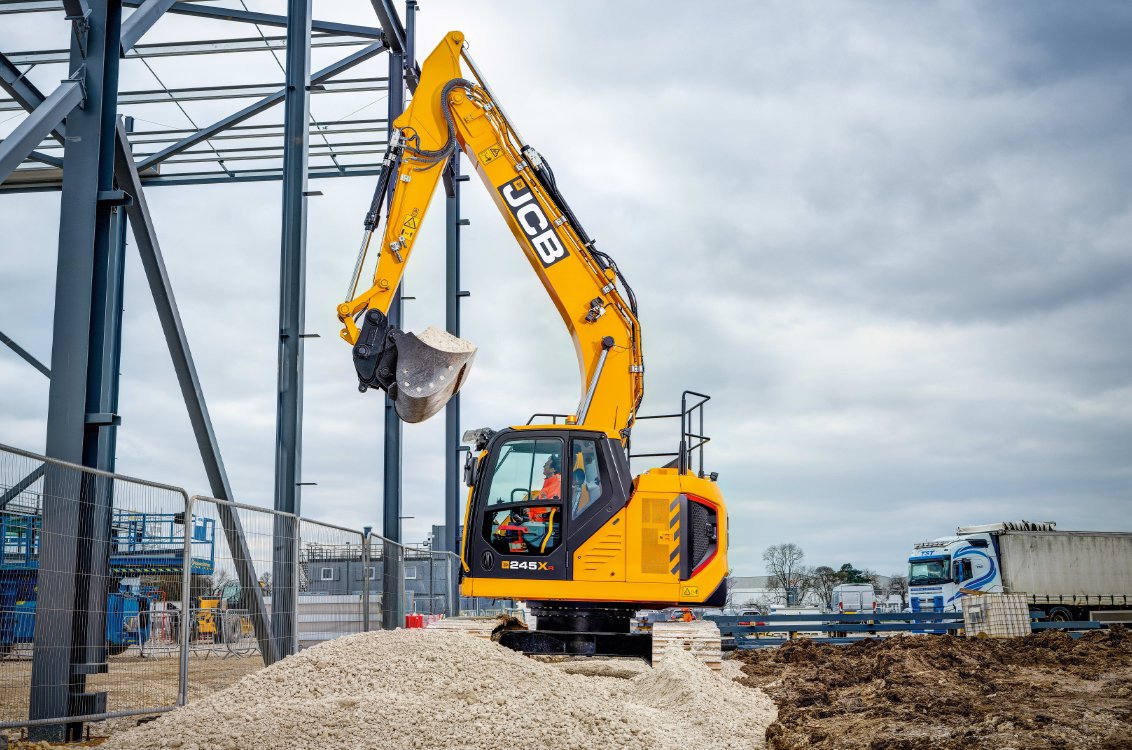

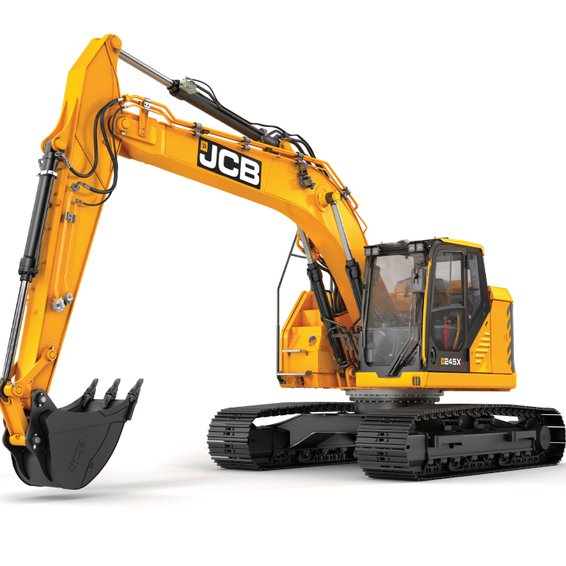

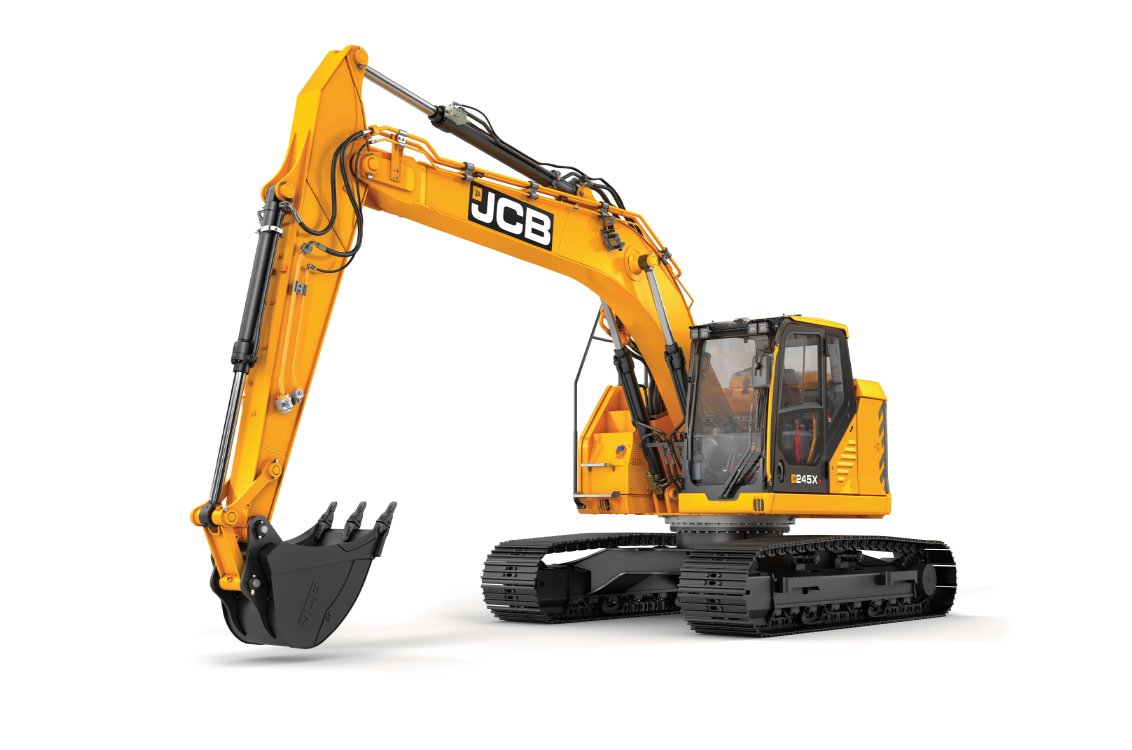

JCB 245XR Crawler Excavator
Navigate tight infrastructure and congested urban developments with the highly capable JCB 245XR. Boasting a reduced tail swing radius of just 68 inches, this heavy-duty excavator provides the agility to work flush against walls and barriers while maintaining a rock-solid 55,742-pound operating footprint. Despite its minimal tail swing, the 245XR retains the full-sized, ultra-comfortable JCB CommandPlus cab, ensuring your operators have the space and visibility they need for long shifts.
Driven by a 173-horsepower EcoMAX engine and advanced Japanese hydraulics pushing 120 gallons per minute of flow, this machine matches the performance of standard-swing competitors. Delivering a relentless 33,272 pounds of bucket breakout force and a 261-inch maximum digging depth, the 245XR brings uncompromising power and tearout capabilities to your most confined jobsites.
Specifications
| Operator Protection | ROPS (ISO 12117-2:2008) Enclosed Cab |
| Operating Weight | 55742.0 lbs |
| Tail Swing Radius | 68.0 in |
| Tail Swing Type | Reduced |
| Overall Width | 118.0 in |
| Overall Height | 139.0 in |
| Overall Length | 353.0 in |
| Horsepower | 173.0 hp |
| Engine Make & Model | JCB EcoMAX 448 |
| Emissions Tier | Stage IV |
| Fuel Tank Capacity | 81.9 gal |
| Arm Length (standard) | 118.0 in |
| Max Digging Depth | 261.0 in |
| Max Reach at Ground Level | 385.0 in |
| Max Dumping Height | 313.0 in |
| Bucket Breakout Force | 33272.0 lbf |
| Stick Digging Force | 23155.0 lbs |
| Max Main Pump Flow | 120.5 (2 x 60.23) gal/min |
| Track Shoe Width | 24.0 in |
| Ground Pressure | 7.1 psi |
