JCB 150X Crawler Excavator

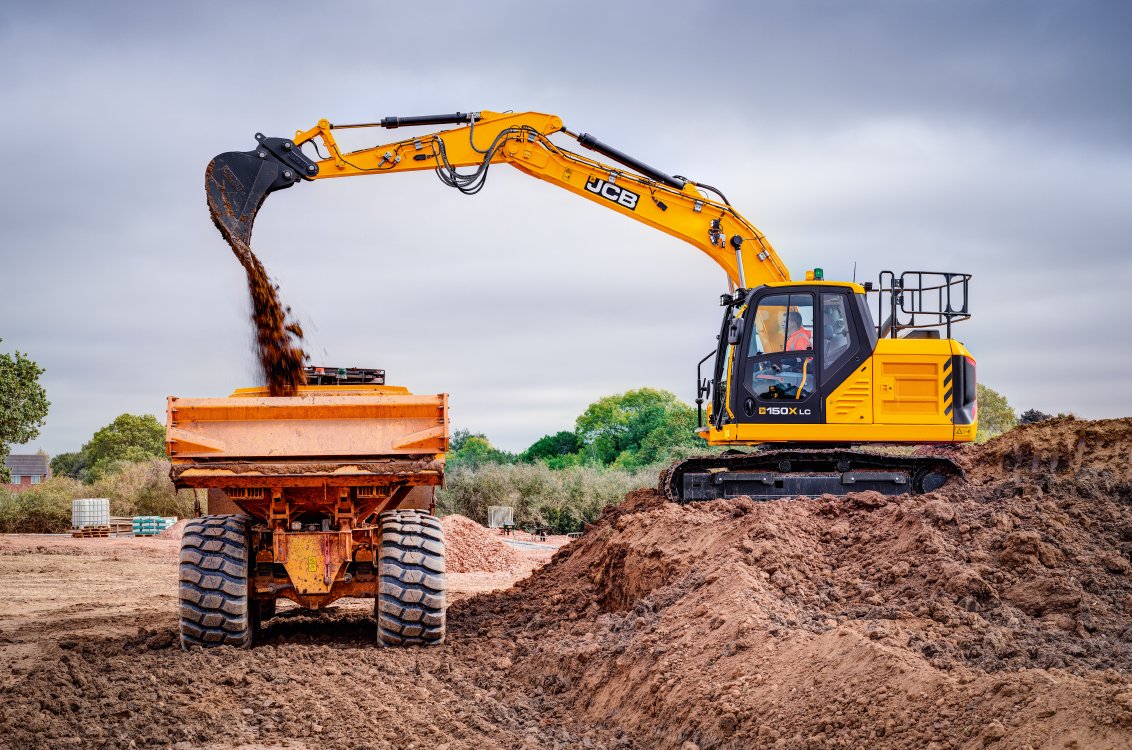

JCB 150X Crawler Excavator loading a dump truck

New Equipment

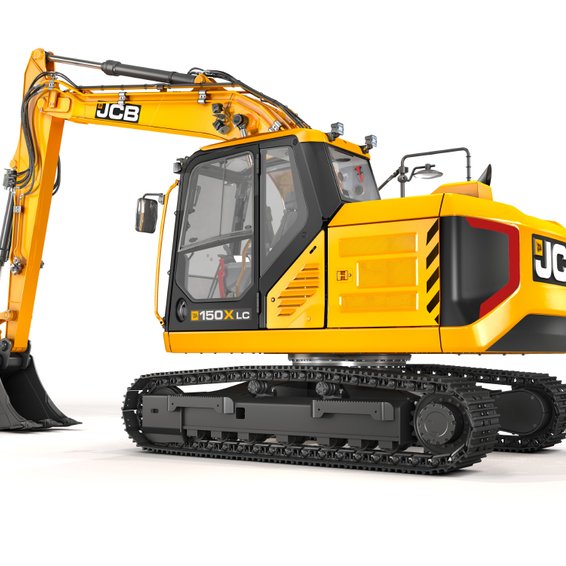

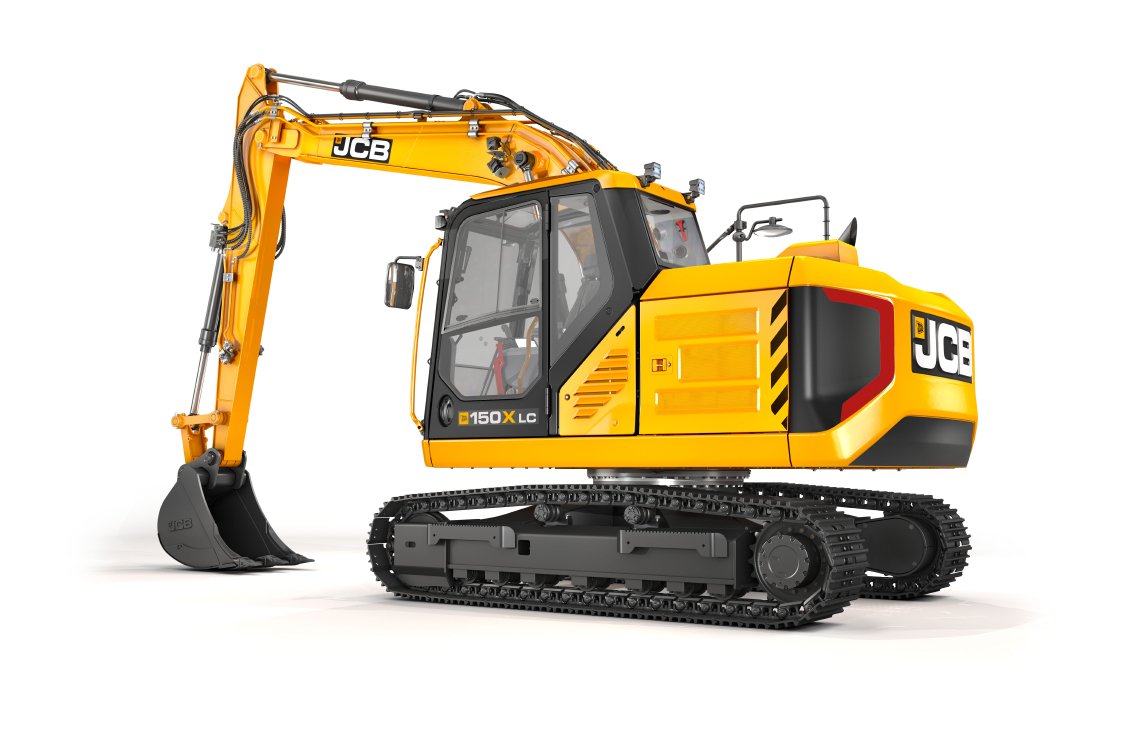

JCB 150X Crawler Excavator

Building upon the success of its 20-ton big brother, the JCB 150X LC crawler excavator brings advanced X-Series engineering into the 15-ton size class. Featuring a 33,986-pound operating weight and a highly rigid, fully-welded frame, this heavy-duty machine is purpose-built to deliver extreme durability and stability on demanding jobsites.

At the heart of the 150X LC is a proven 109-horsepower EcoMAX engine, paired with premium Japanese hydraulics providing 68.6 gallons per minute of main pump flow. Generating a substantial 23,492 pounds of bucket breakout force and a maximum digging depth of 239 inches, it offers the relentless tearout capabilities necessary for aggressive trenching and commercial material handling.

Request a Quote

Specifications

Operator Protection	ROPS (ISO 12117-2:2008) Enclosed Cab

Operating Weight	33986.0 lbs
Tail Swing Radius	84.6 in
Overall Width	98.0 in
Overall Height	118.2 in
Overall Length	301.5 in

Horsepower	109.0 hp
Engine Make & Model	JCB EcoMAX 444 TCA
Emissions Tier	Tier 4 Final
Fuel Tank Capacity	68.7 gal

Arm Length (standard)	18.1 in
Max Digging Depth	238.7 in
Max Reach at Ground Level	342.7 in
Max Dumping Height	275.9 in
Bucket Breakout Force	23492.0 lbf
Stick Digging Force	13454.0 lbs

Max Main Pump Flow	68.6 (2 x 34.3) gal/min
Track Shoe Width	19.7 in
Ground Pressure	7.0 psi
