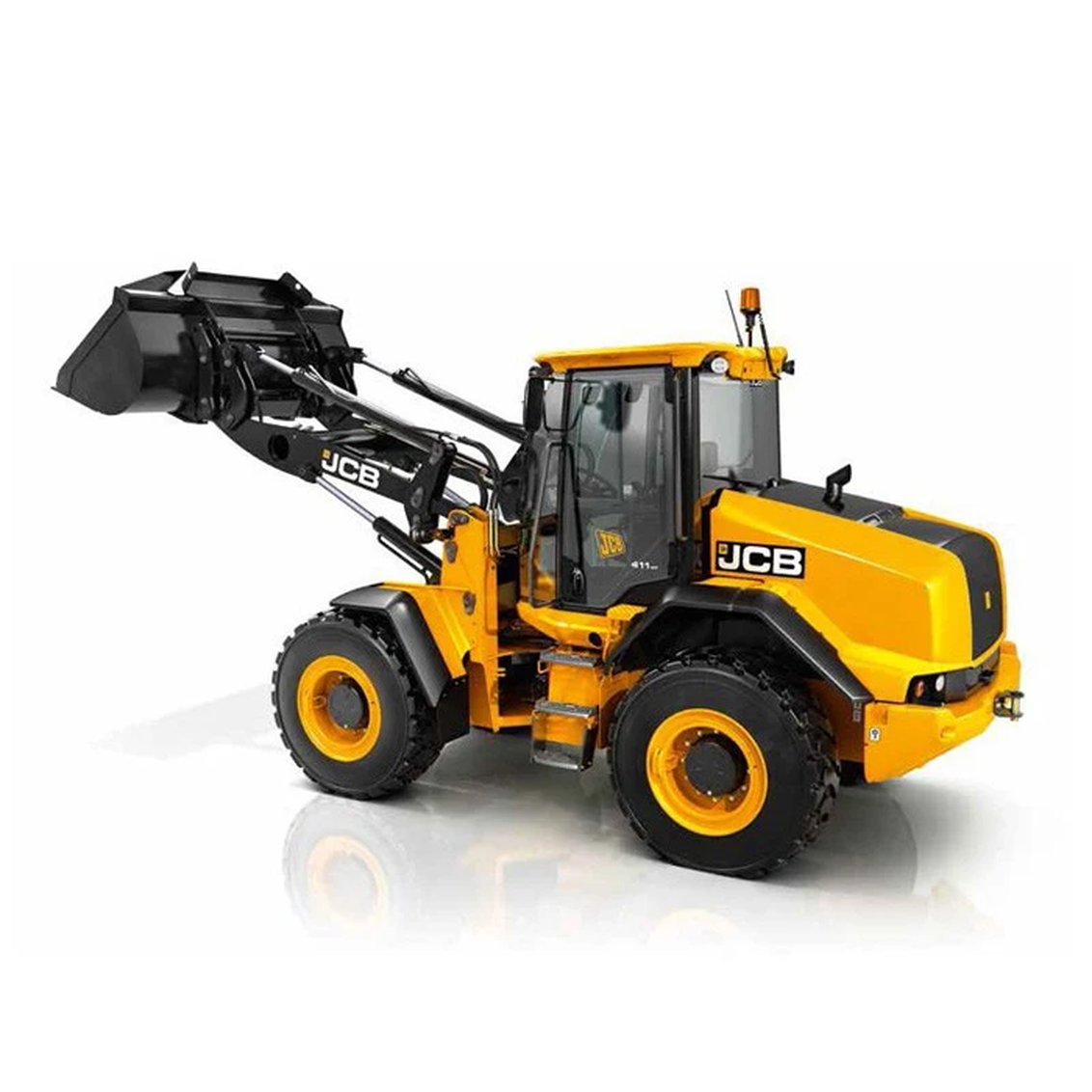

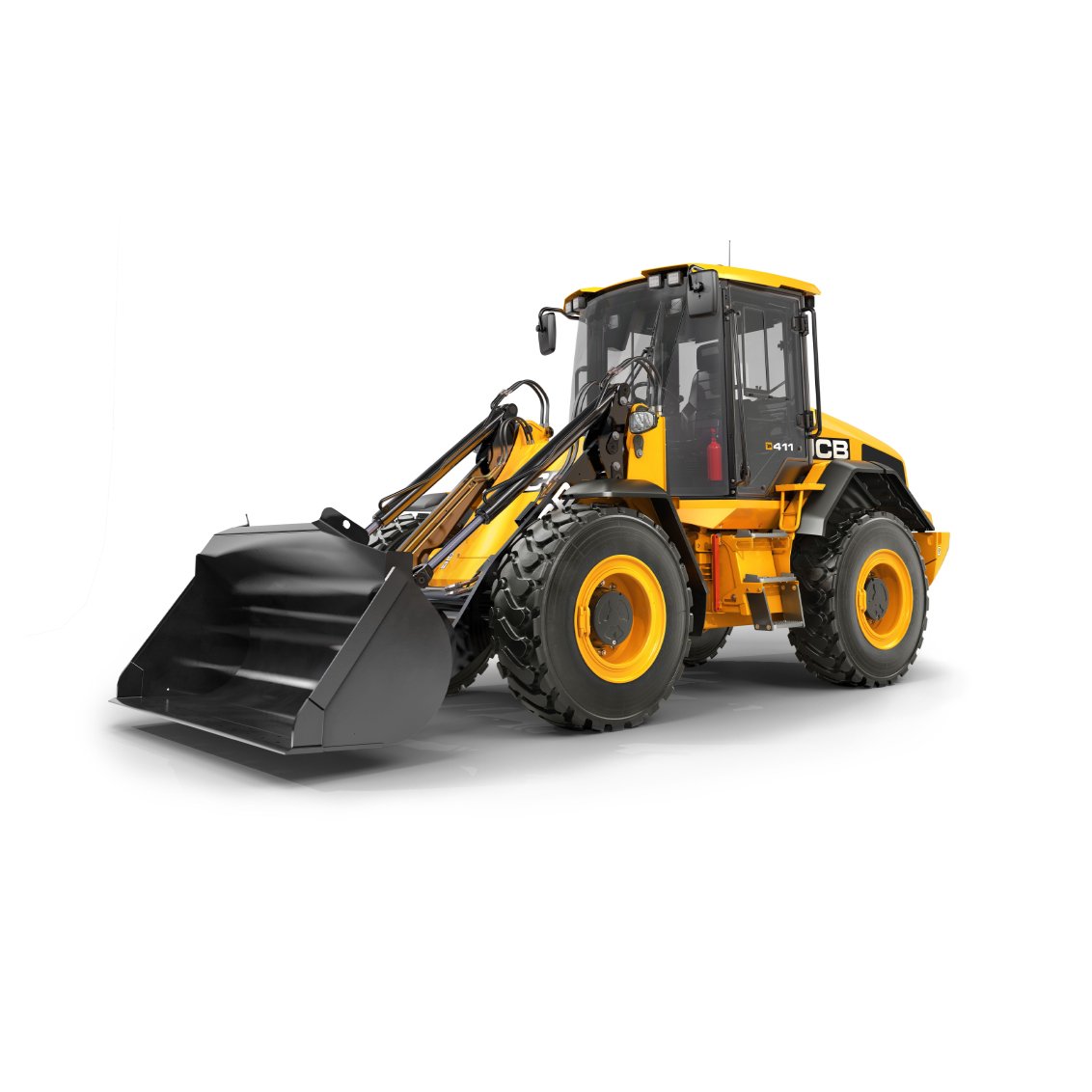

JCB 411 Wheel Loader

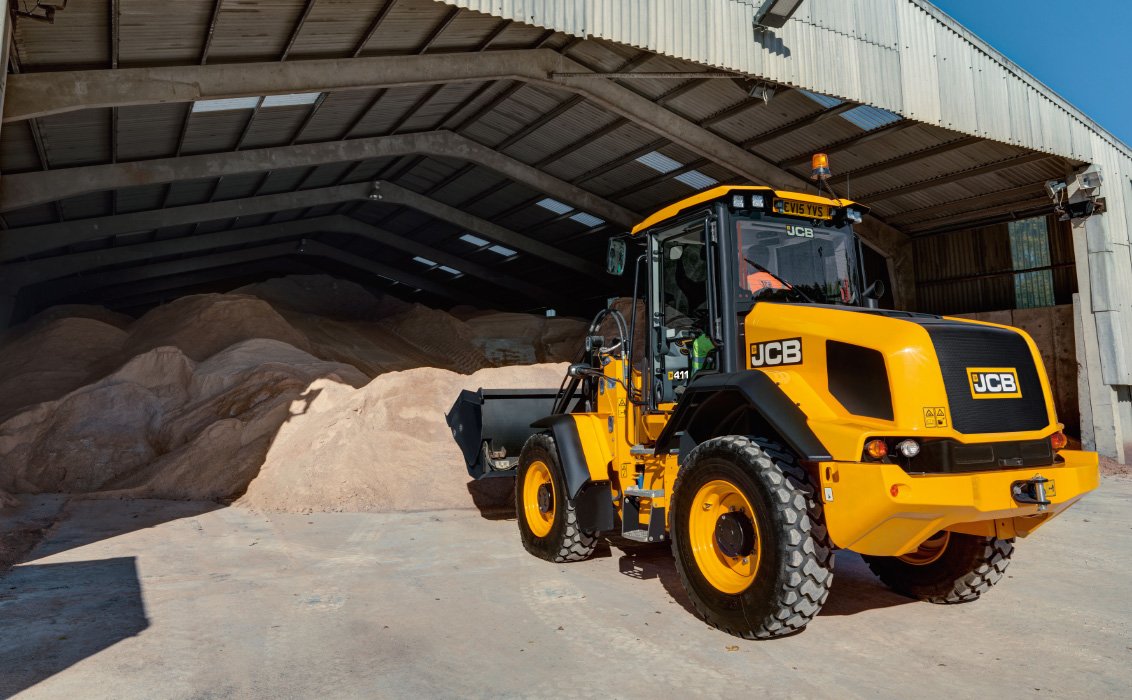

The JCB 411 wheel loader brings exceptional versatility and agility to confined construction sites, agricultural yards, and material handling facilities. Propelled by a highly efficient, DPF-free JCB EcoMAX engine, this machine delivers a reliable 100.2 net horsepower, ensuring swift cycle times without the downtime associated with exhaust regeneration. Weighing in with an operating weight of 19,228 lbs, the 411 provides a nimble yet incredibly stable footprint, allowing operators to confidently navigate tight turning while managing heavy materials.

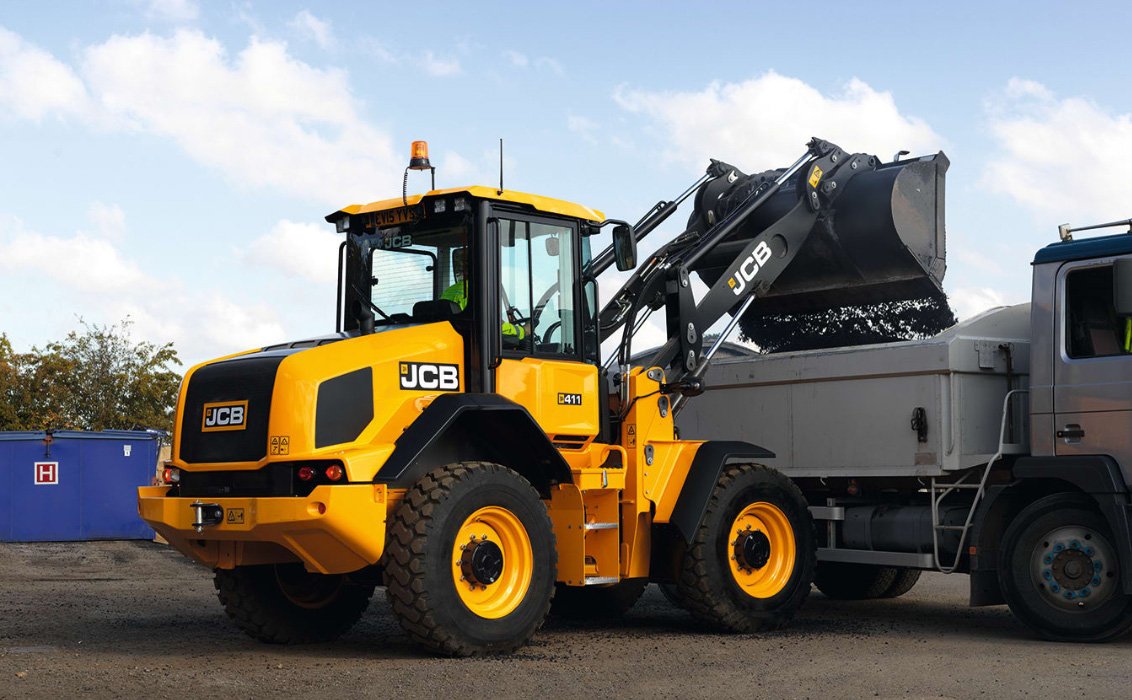

Built to move earth and aggregate with precision, this loader comes equipped with a 1.8 yd³ standard bucket capacity that perfectly balances payload size with maneuverability. When handling dense loads, operators can depend on a robust straight tipping load of 14,092 lbs to keep the chassis securely planted. Furthermore, a generous maximum dump clearance of 107.0 inches ensures that clearing the sideboards of dump trucks or feeding mid-sized hoppers remains a smooth, effortless process throughout the workday.
Specifications
| Operator Protection | EROPS |
| Operating Weight | 19290.0 lbs |
| Overall Length (with Bucket on ground) | 245.0 in |
| Overall Width (over tires) | 87 in |
| Overall Height (to top of cab/ROPS) | 120.0 in |
| Wheelbase | 108.0 in |
| Ground Clearance | 14.0 in |
| Turning Radius (Outside Bucket) | 101.0 in |
| Horsepower | 108.0 hp |
| Engine Make & Model | JCB EcoMAX T4F |
| Emissions Tier | Tier 4 Interim |
| Fuel Tank Capacity | 30.6 gal |
| Bucket Capacity | 1.6 cu yd |
| Breakout Force | 15220.0 lbs |
| Tipping Load (straight) | 14092.0 lbs |
| Tipping Load (full turn) | 12017.0 lbs |
| Height to Hinge Pin | 132.0 in |
| Dump Clearance (@ max height) | 107.0 in |
| Dump Reach (@ max height) | 39.0 in |
| Max Travel Speed | 24.85 mph |
| Auxiliary Standard Flow | 32.5 gpm |
| Tire Size | 15.5R25 L3 |
