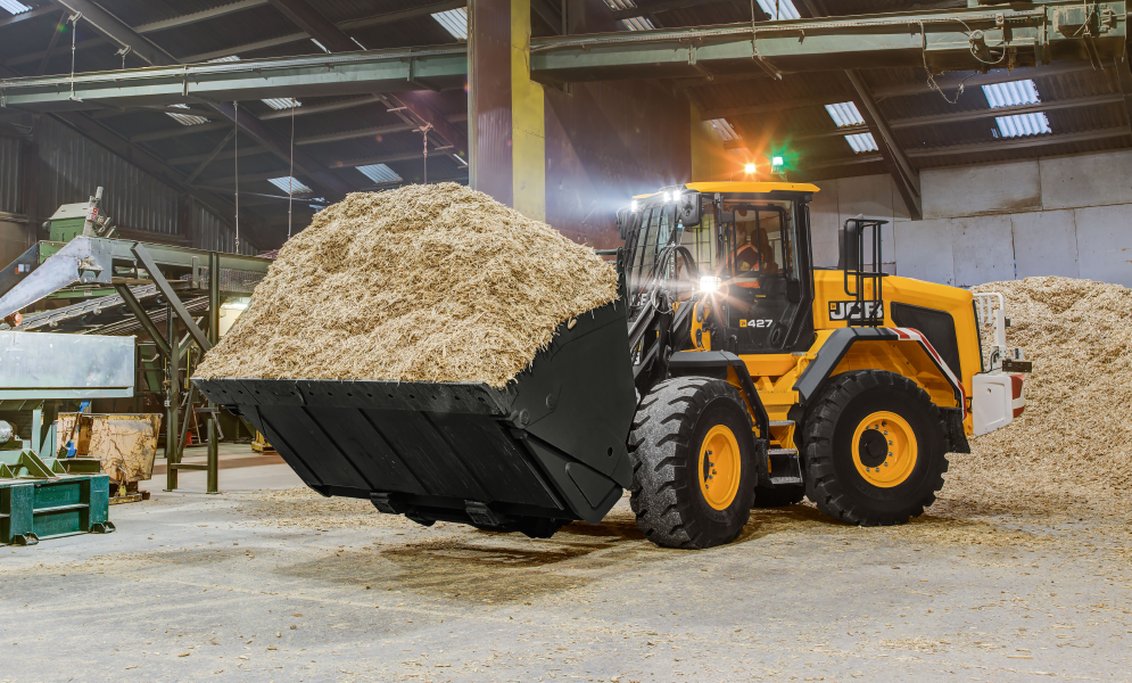

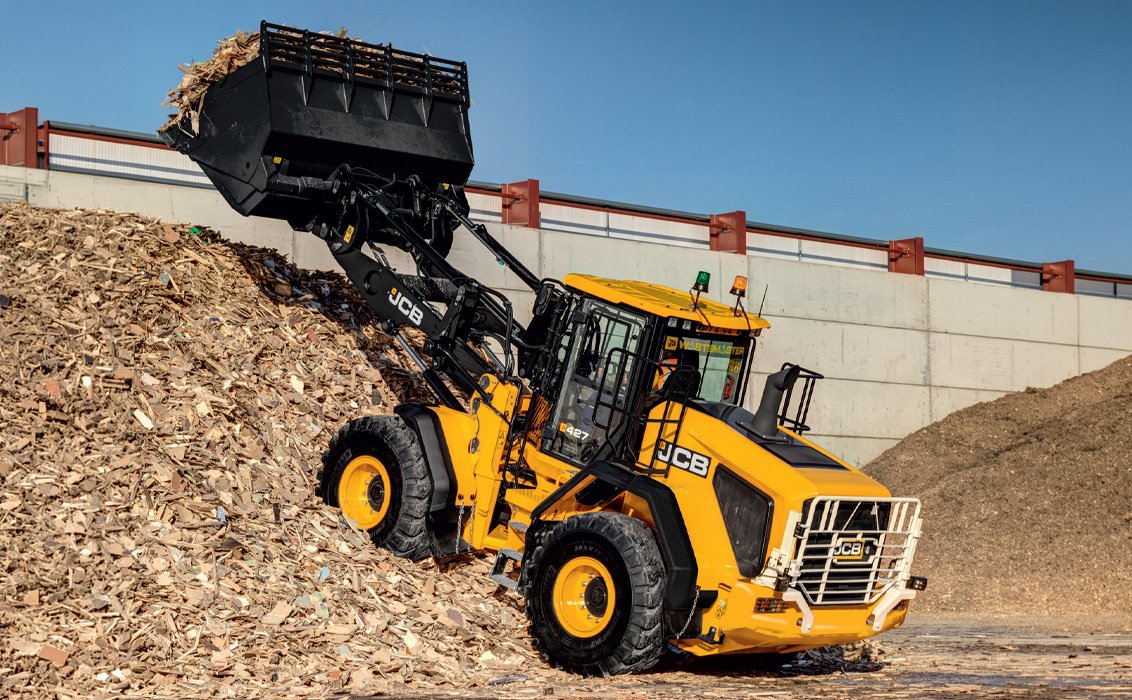

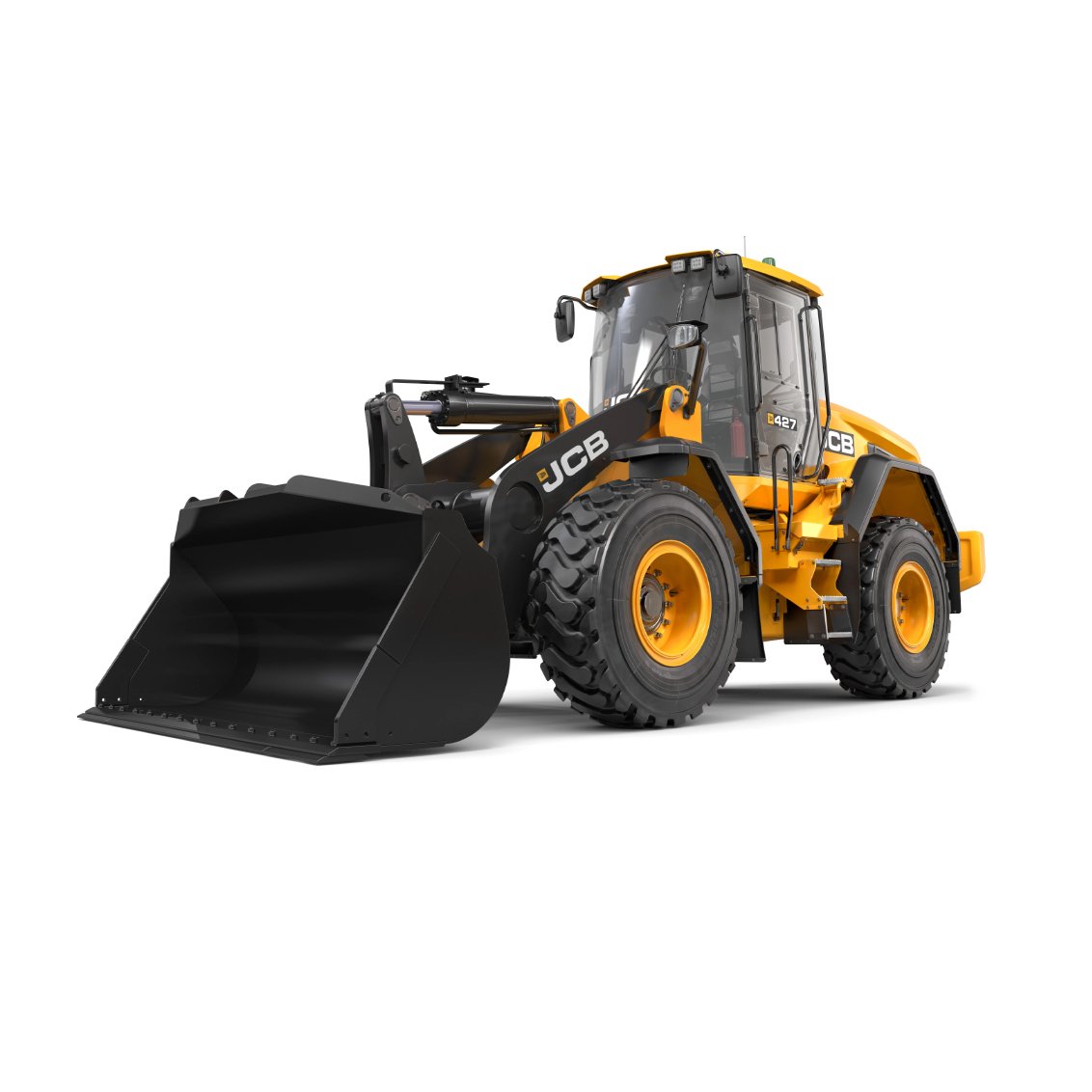

JCB 427 Wheel Loader
Stepping up to mid-sized mastery, the JCB 427 is purpose-engineered to dominate waste handling, agricultural applications, and intense material transfer operations. This dynamic workhorse derives its muscle from a highly capable Cummins QSB 6.7-liter engine, seamlessly putting down 146 net horsepower without relying on a costly Diesel Particulate Filter (DPF). To keep traction firmly rooted to the ground, it boasts a formidable operating weight of 29,500 lbs, allowing operators to execute aggressive digging cycles with unmatched stability.
When cycle time is everything, the 427 answers the call with a generous 3.1 yd³ standard bucket, enabling operators to rapidly reduce massive stockpiles. It handles fully loaded passes with absolute authority, backed by an impressive straight static tipping load of 23,514 lbs that ensures total chassis security during elevation. Furthermore, fleet managers will appreciate the highly functional 106.0-inch maximum dump clearance, perfectly tailored for efficient, high-volume loading into standard haul trucks and material processing hoppers.
Specifications
| Operator Protection | ROPS (ISO 3471), FOPS (ISO 3449) |
| Operating Weight | 29500.0 lbs |
| Overall Length (with Bucket on ground) | 278.0 in |
| Overall Width (over tires) | 98 in |
| Overall Height (to top of cab/ROPS) | 132.0 in |
| Wheelbase | 120.0 in |
| Ground Clearance | 19.0 in |
| Turning Radius (Outside Bucket) | 232.0 in |
| Horsepower | 146.0 hp |
| Engine Make & Model | Cummins QSB 6.7 |
| Emissions Tier | Tier 4 Final (T4f) |
| Fuel Tank Capacity | 76.6 gal |
| Bucket Capacity | 3.1 cu yd |
| Breakout Force | 27651.0 lbs |
| Tipping Load (straight) | 23514.0 lbs |
| Tipping Load (full turn) | 20115.0 lbs |
| Height to Hinge Pin | 153.0 in |
| Dump Clearance (@ max height) | 106.0 in |
| Dump Reach (@ max height) | 41.0 in |
| Max Travel Speed | 24.85 mph |
| Auxiliary Standard Flow | 66.5 gpm |
| Tire Size | 20.5R25 L3 |
