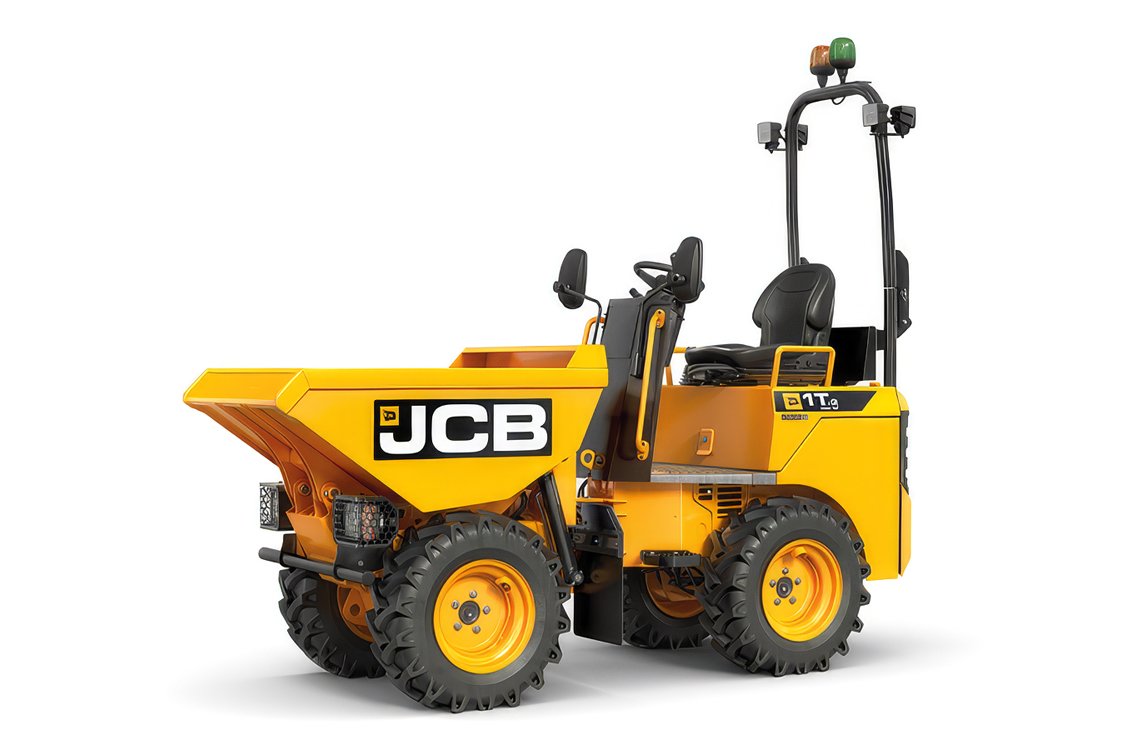

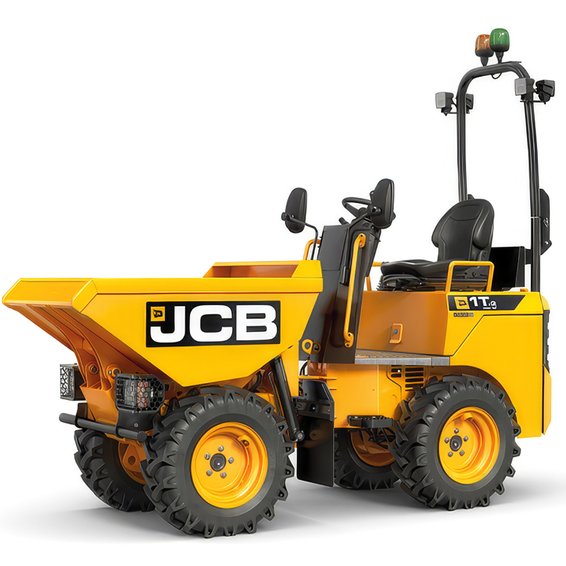

JCB 1T-2 Site Dumper
The JCB 1T-2 Site Dumper is built to deliver unrivalled safety, durability, and serviceability for rental fleets and independent contractors. Powered by a Stage V compliant 21.6 hp Perkins engine, this machine delivers 21% more torque than previous generations, ensuring reliable performance and power when navigating challenging job sites. Its intuitive "stop and go" hydrostatic drive pedal makes operation straightforward for both novices and experienced operators, allowing for safe and precise maneuvering in confined areas.

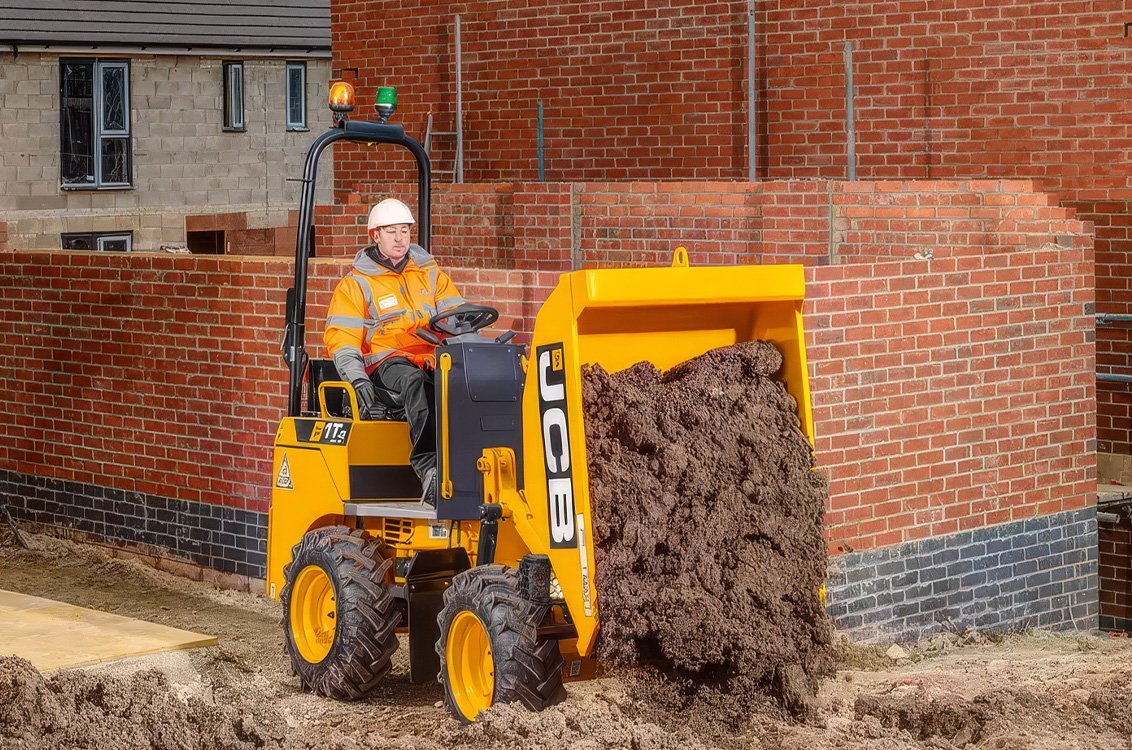

Designed to maximize productivity, the 1T-2 features a 2,205 lb maximum payload and a 19.6 cu.ft. heaped bucket capacity, easily hauling the equivalent of 6 to 7 standard wheelbarrows in a single trip. The forward high-tip mechanism allows operators to dump material directly into tall skips and large containers. For exceptionally tight access, an optional narrow tire configuration reduces the machine's overall width to just 38.6 inches, allowing it to comfortably fit through standard doorways and garden gates.
Specifications
| Operator Environment | Open Canopy with Folding ROPS |
| Overall Height | 102.4 in |
| Overall Length | 121.9 in |
| Overall Width | 43.5 in |
| Operating Weight | 3340.0 lbs |
| Engine Manufacturer | Perkins |
| Engine Model | 403J-11 |
| Max Speed | 7.4 mph |
| Power Mode | Diesel |
| Horsepower | 21.6 hp |
| Transmission | Hydrostatic |
| Max Payload | 2205.0 lbs |
| Turning Radius | 106.8 in |
| Tipping Type | High-Tip (Forward) |
| Bucket Capacity | 19.6 cu.ft. |
