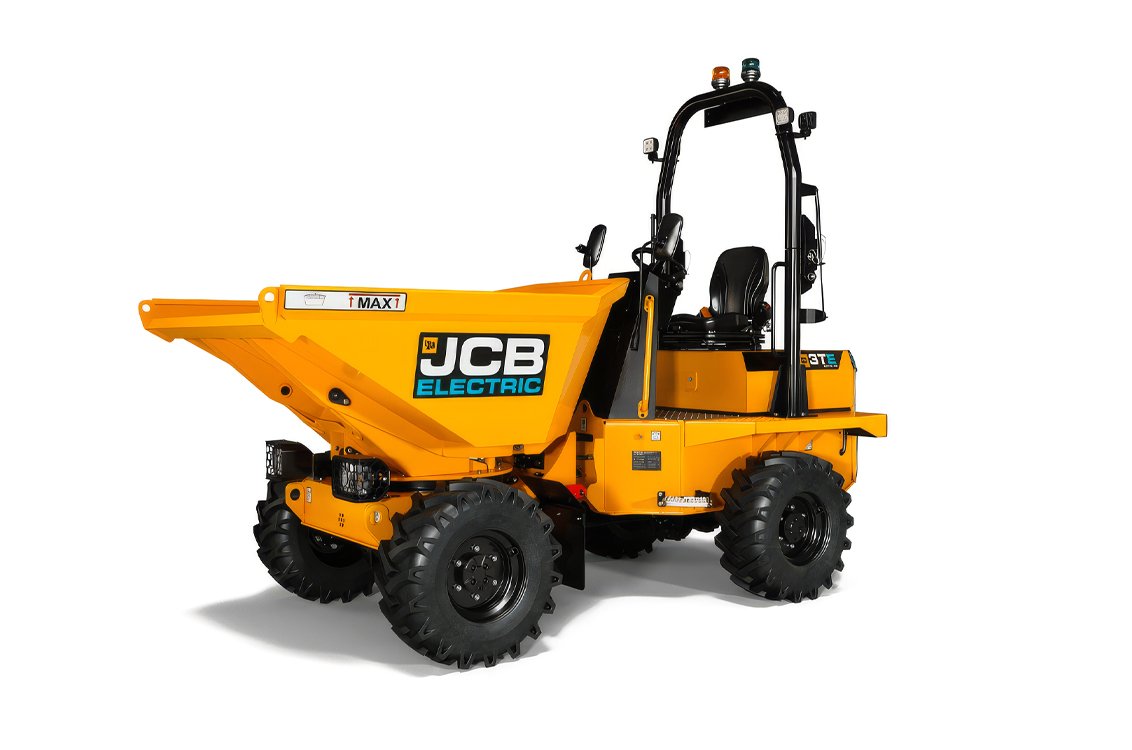

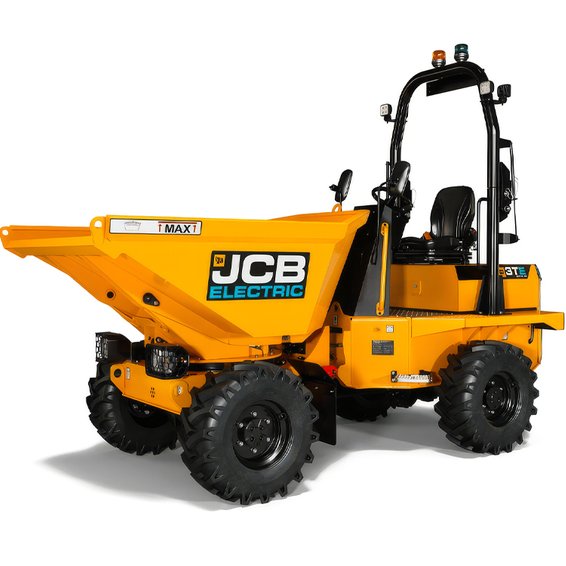

JCB 3TE Electric Site Dumper

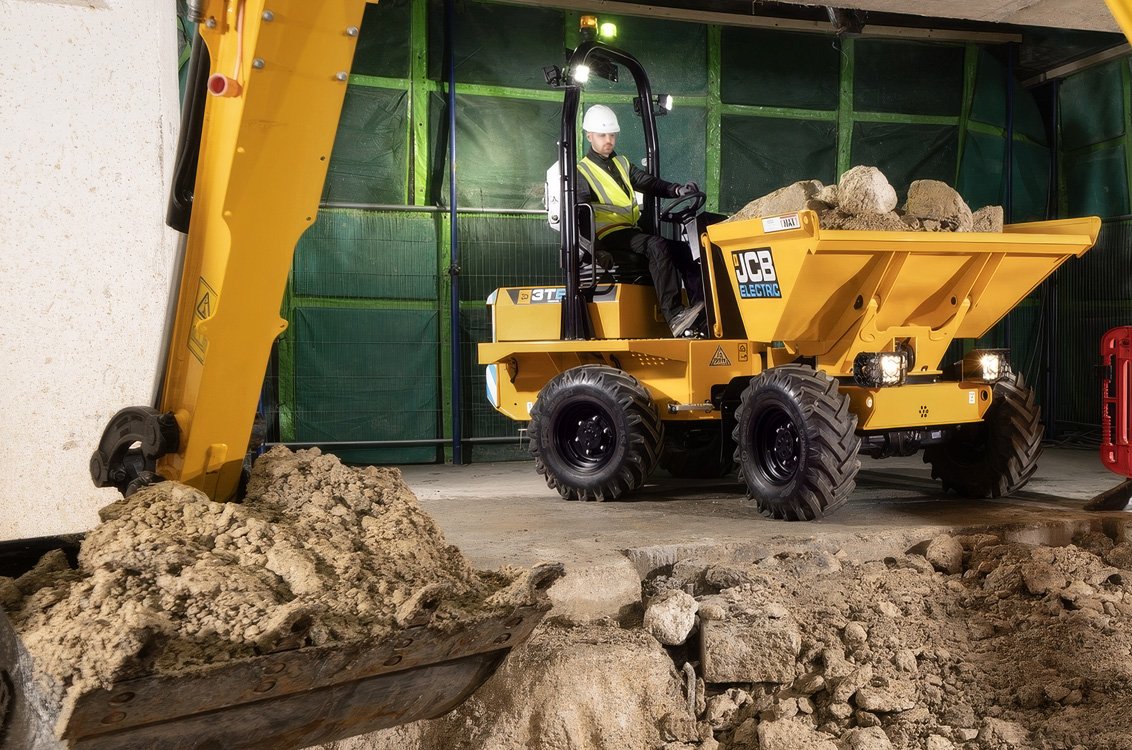

The JCB 3TE Site Dumper brings zero-emission, low-noise operation to the mid-range mass material handling market, making it the perfect solution for indoor demolition, underground projects, and noise-sensitive urban jobsites. Powered by an advanced lithium-ion battery system, it delivers equal hydraulic and drive performance to its diesel counterpart, providing enough capacity to last a typical full working day on a single charge. It also features a regenerative braking system, which captures energy that would normally be wasted and uses it to top up the battery, keeping your crew moving longer.

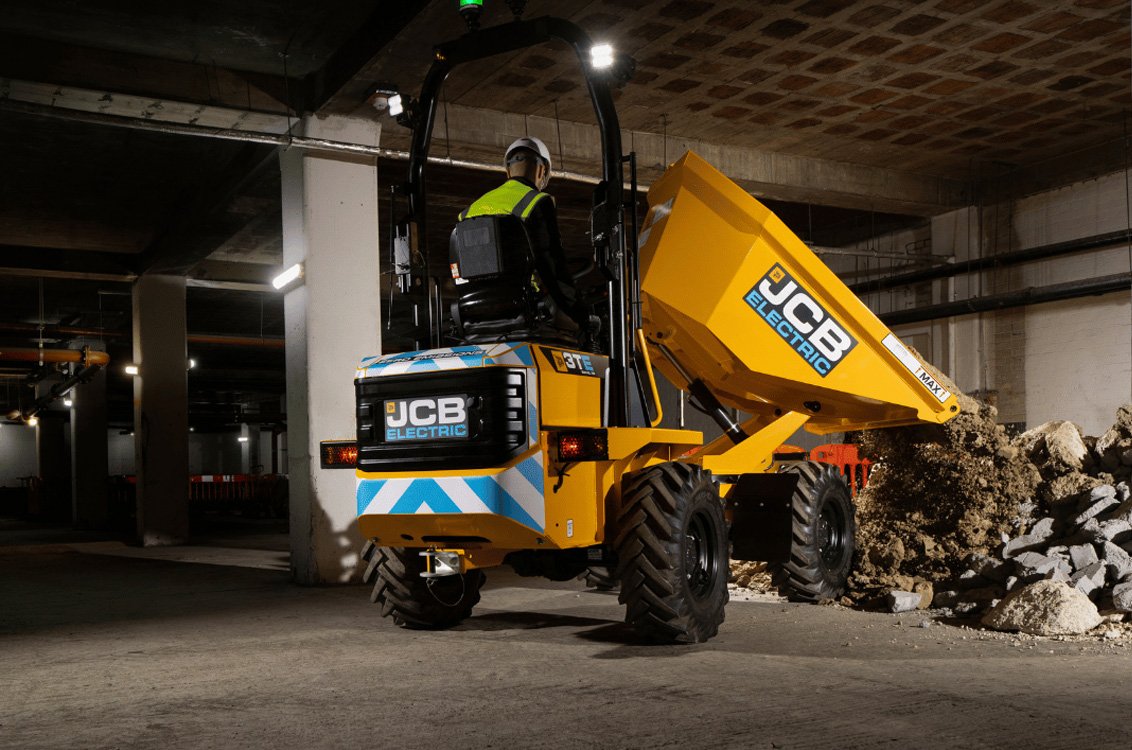

Built for versatility and safety, the 3TE features a massive 6,600 lb payload and a 57.1 cu.ft. heaped skip, combined with a precise swivel-tip mechanism for dumping material in tight spaces or directly alongside trenches. Operators benefit from the same ergonomic control layout and permanent 4WD traction as the traditional diesel models, but with enhanced safety features. These include a multifunction battery status display, an initial movement alarm to alert nearby pedestrians, and a two-stage drive inhibit system tied to a high-visibility orange seatbelt to ensure safe operation at all times.
Specifications
| Operator Environment | ROPS Frame (Folding) |
| Overall Height | 118.7 in |
| Overall Length | 154.6 in |
| Overall Width | 65.0 in |
| Operating Weight | 5269.0 lbs |
| Engine Manufacturer | JCB E-TECH |
| Engine Model | E-TECH Electric Motor |
| Max Speed | 9.4 mph |
| Power Mode | 100% Electric |
| Battery Rating | 20.0 kWh |
| Transmission | Electric Motor via Transfer Box (Permanent 4WD) |
| Max Payload | 6600.0 lbs |
| Turning Radius | 180.0 in |
| Tipping Type | Swivel Tip |
| Bucket Capacity | 57.1 cu.ft. |
