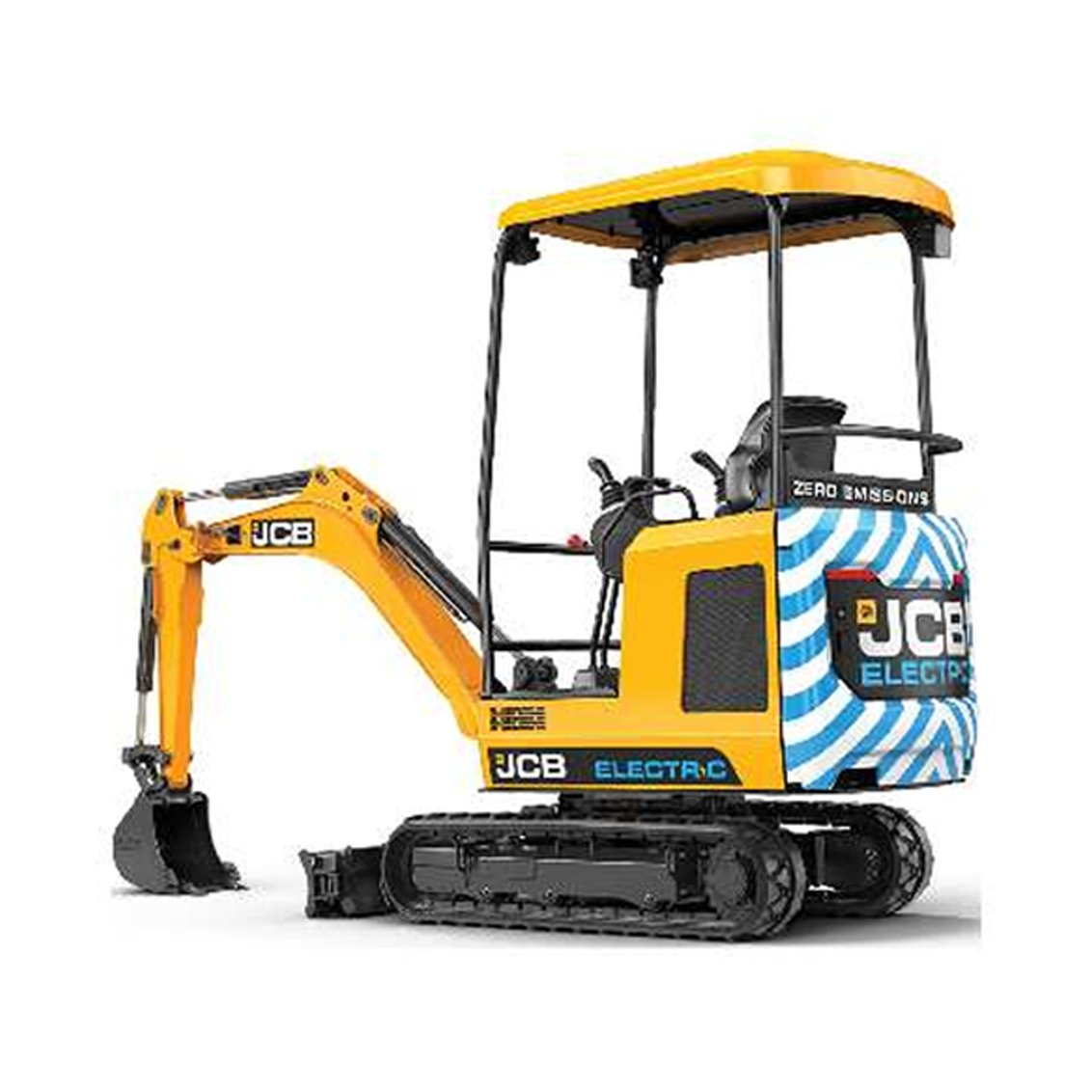

JCB 19C-1E Electric Mini Excavator
Delivering zero emissions and significantly reduced noise without compromising performance, the JCB 19C-1E is the industry's first fully electric mini excavator. Powered by a 19.8 kWh lithium-ion battery pack, it offers the freedom to complete a full 5-hour shift on a single charge and is completely free of any hazardous trailing tethers. Retaining the robust 4,193-pound structure and extending undercarriage of its diesel counterpart, the 19C-1E pushes over 4,000 lbf of bucket breakout force, making it the ultimate clean-technology solution for indoor renovations, night shifts, and urban utility work.
Specifications
| Operator Protection | ROPS/TOPS/FOGS |
| Tail Swing Type | Conventional |
| Operating Weight | 4105.0 lb |
| Overall Width | 39.0 in |
| Overall Width (extended) | 52.0 in |
| Overall Height | 140.0 in |
| Overall Length | 150.0 in |
| Motor Power | 7.0 kW |
| Engine Manufacturer | JCB |
| Engine Model | 3 Phase AC Permanent Magnet |
| Emissions Tier | Zero Emissions |
| Battery Capacity | 19.8 kWh |
| System Voltage | 48.0 V |
| Maximum Digging Depth | 95.0 in |
| Maximum Reach at Ground Level | 156.0 in |
| Maximum Dumping Height | 102.0 in |
| Bucket Breakout Force | 4046.0 lbf |
| Stick Digging Force - Standard | 2045.0 lbf |
| Blade Size (H x W) | 90 x 52 (with extensions) in |
| Arm Configuration | 43 in Standard Arm (37 in and 53 in options available) |
| Auxiliary Circuit Flow | 8.0 gal/min |
| Track Shoe Type | Rubber (steel available) |
| Ground Pressure | 5.1 psi |
