Used Equipment

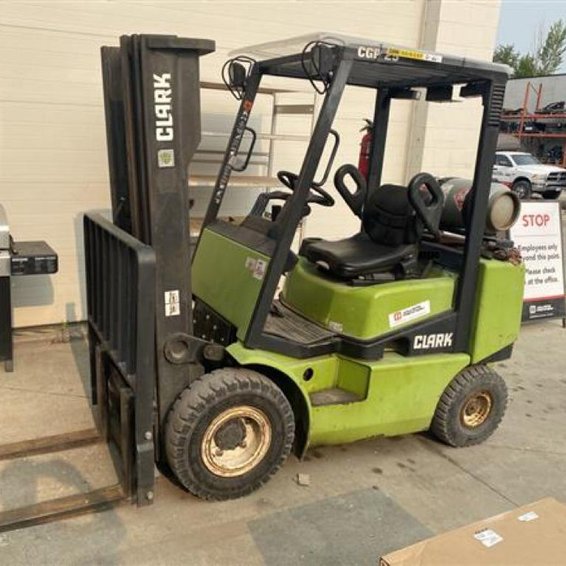

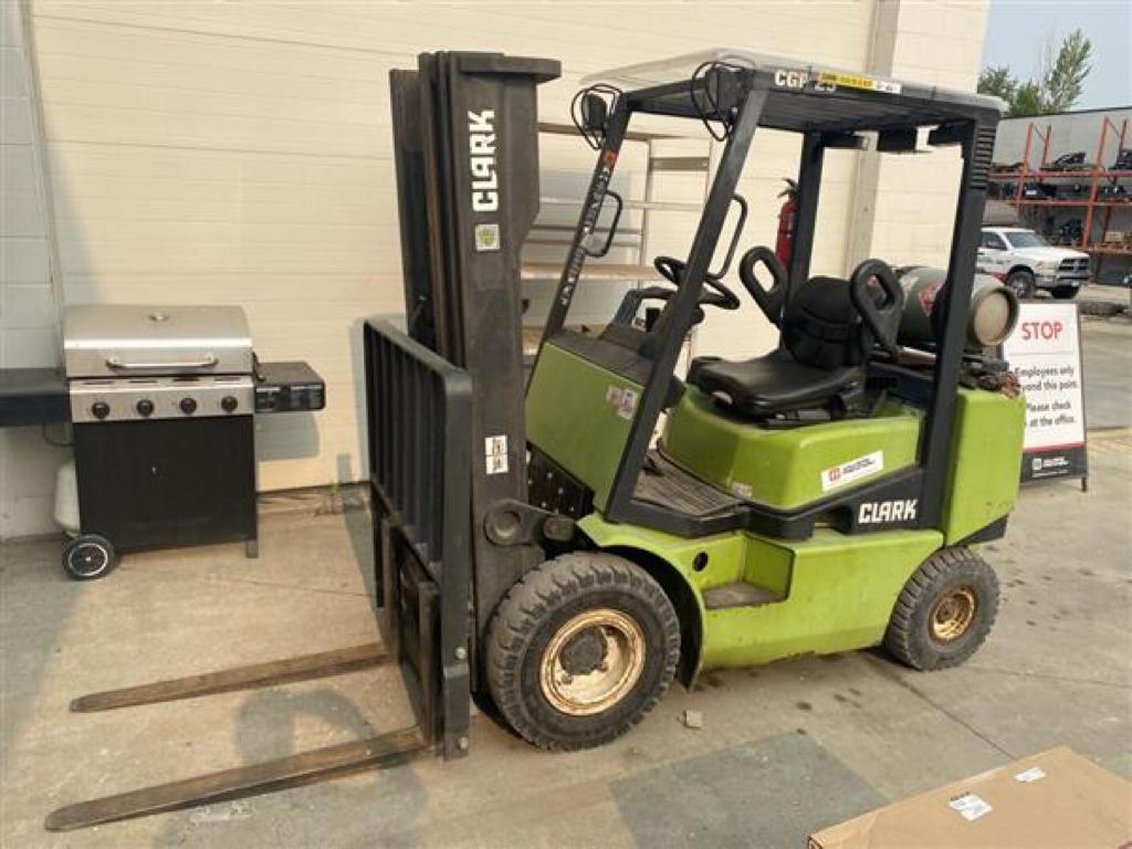

1996 CLARK CGP25

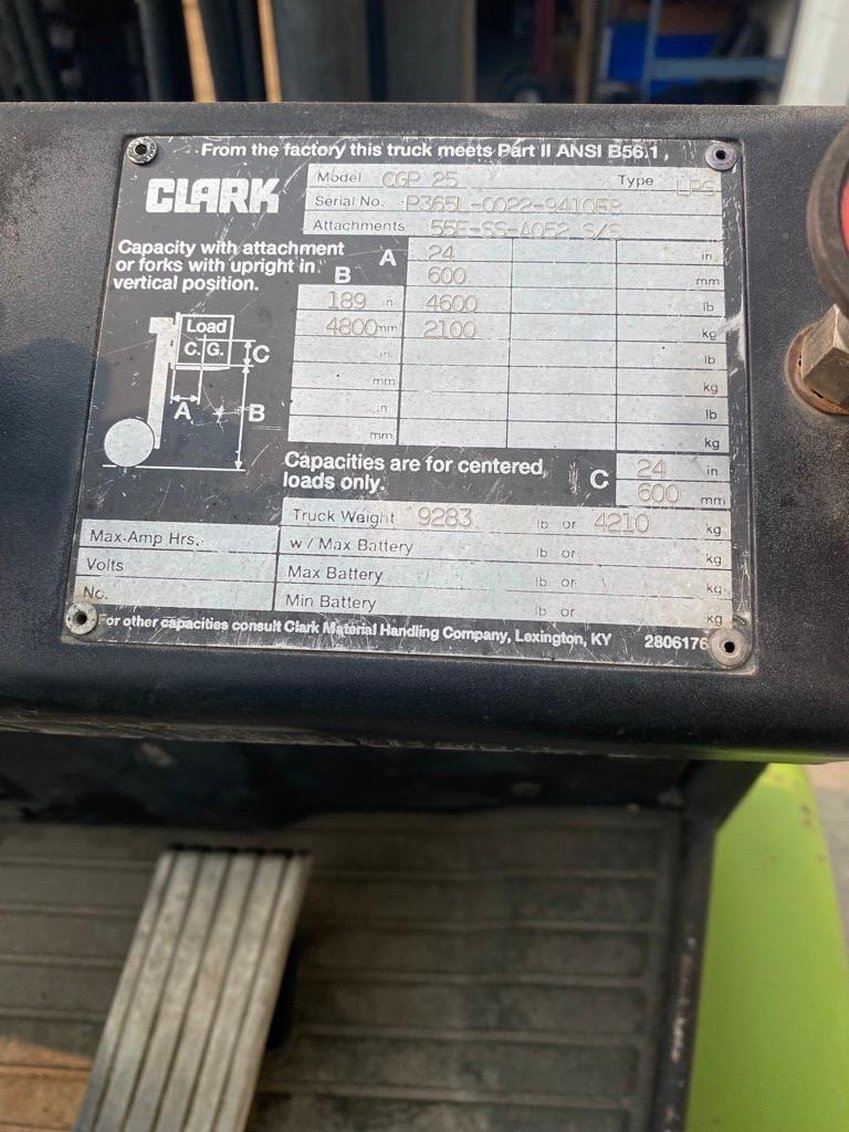

Serial Number: P365L-0022-9410FB
Engine Hours: 3501
Specifications
| Brakes | Power Assist |
| Power Mode | Gasoline |
| Torque @ RPM | 120.0 ft-lb |
| Engine | 4G64 |
| Horsepower | 46.0 hp |
| Engine Manufacturer | Mitsubishi |
| Cylinders/Displacement | 4/143 |
| Lowered Overall Height | 91.0 in |
| Standard Mast: Free Lift | 67.0 in |
| Maximum Fork Height | 189.0 in |
| Mast | 3-Stage |
| Steering | Hydrostatic |
| Transmission | Powershift |
| Number of Speeds | 1.0 |
| Fork Size (T x W x L) | 1.5 X 4 X 42 in |
| Front Overhang | 17.9 in |
| Height to Top Overhead Guard | 86.3 in |
| Maximum Fork Spread | 39.0 in |
| Minimum Aisle Right Ang Stack | 107.1 in |
| Overall Length | 99.5 in |
| Overall Width | 46.7 in |
| Tread (Front/Rear) | 39.3/34.9 |
| Wheelbase | 63.8 in |
| Center of Wheelbase | 7.5 in |
| Steer Tire Size | 6.00 x 9-10 |
| Drive Tire Size | 7.00 x 12-14 |
| Lift Capacity | 5000.0 lbs |
| Maximum Drawbar Pull | 3515.0 lbs |
| Load Center | 24.0 in |
| Travel Speed Loaded | 12.2 mph |
| Gradeability Loaded @ 1 mph | 23.9 percent |
| Max Fork Height Rated Capacity | 170.0 in |
Financing Options
We offer best in class financing for new and used equipment. Not sure what you may qualify for, reach out to our financing team today to get pre-approved at the lowest rate possible.
Learn MoreSpecifications and images may vary in accuracy.
Data Powered By EquipmentWatch
