Used Equipment

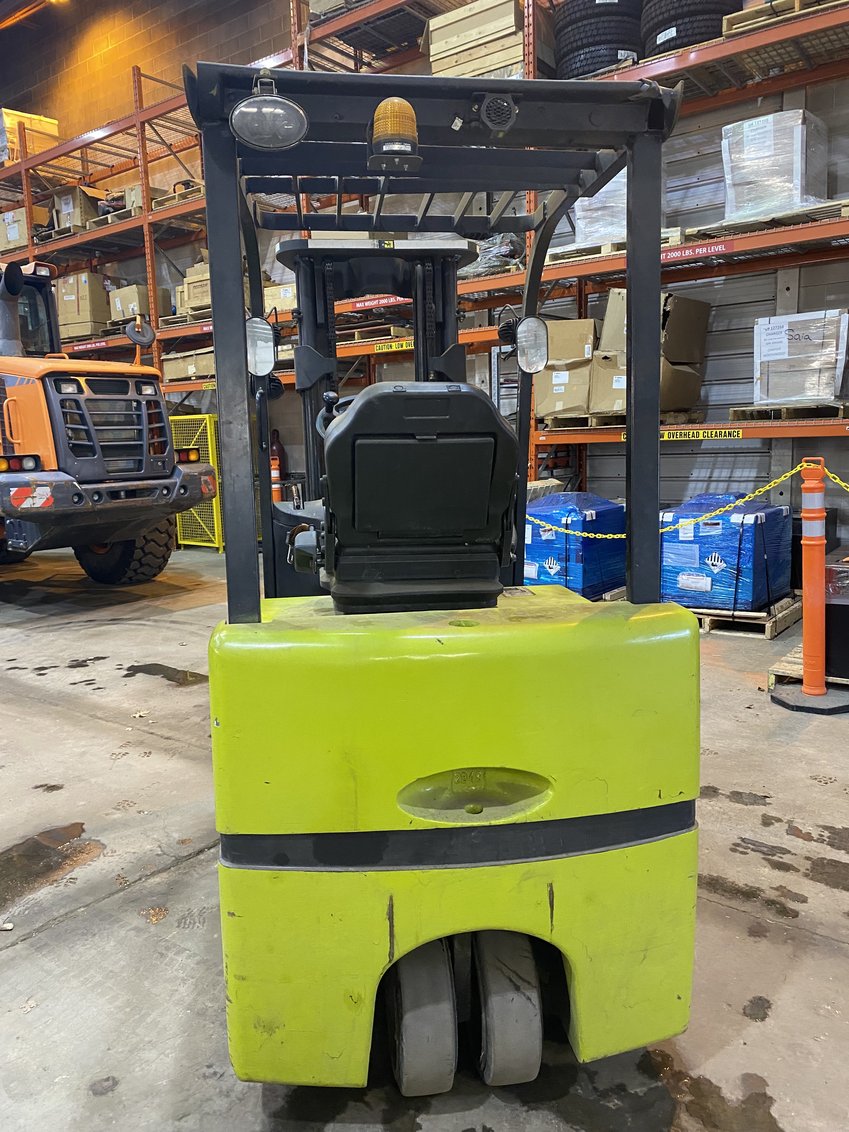

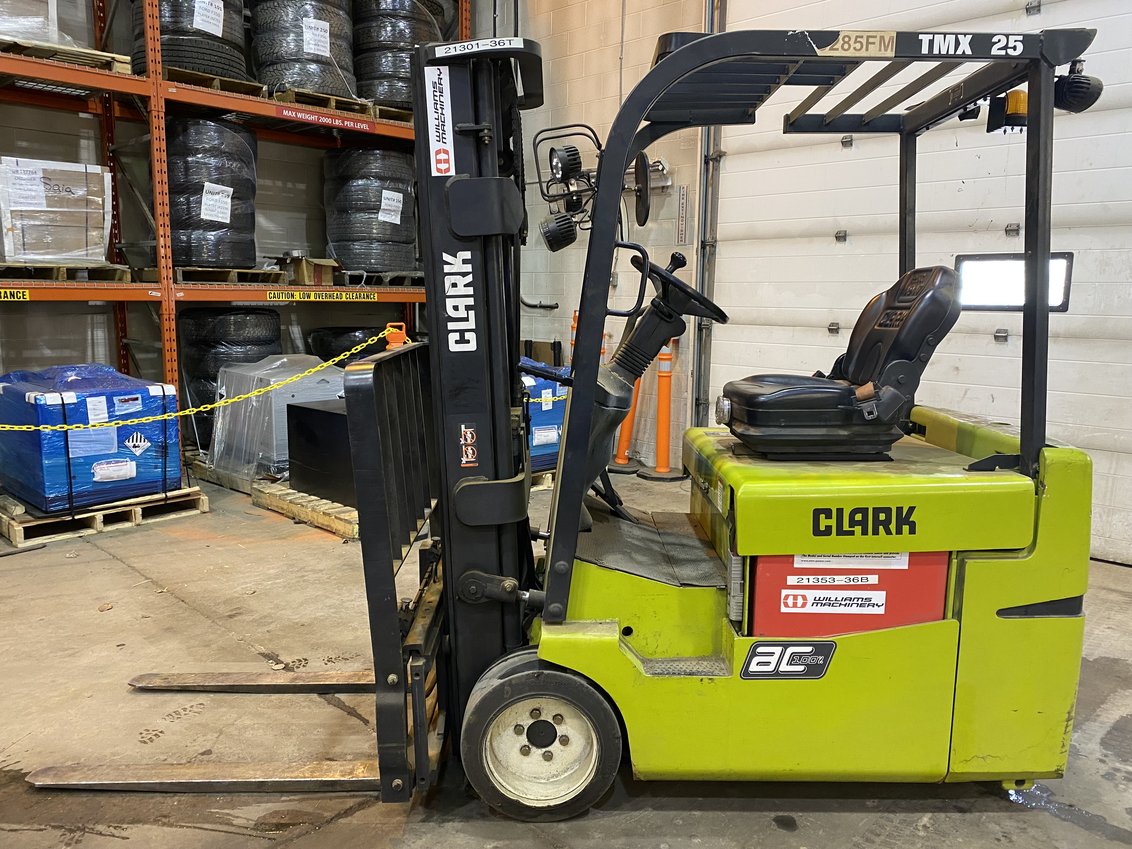

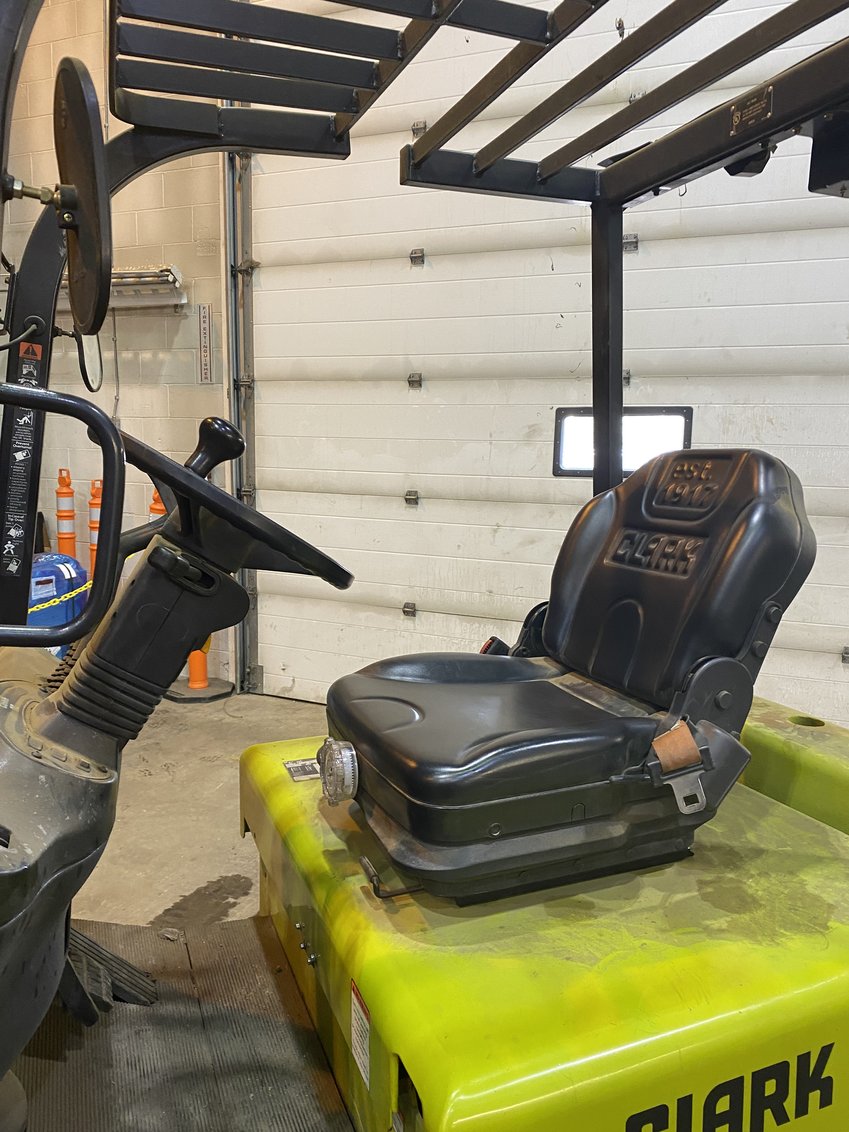

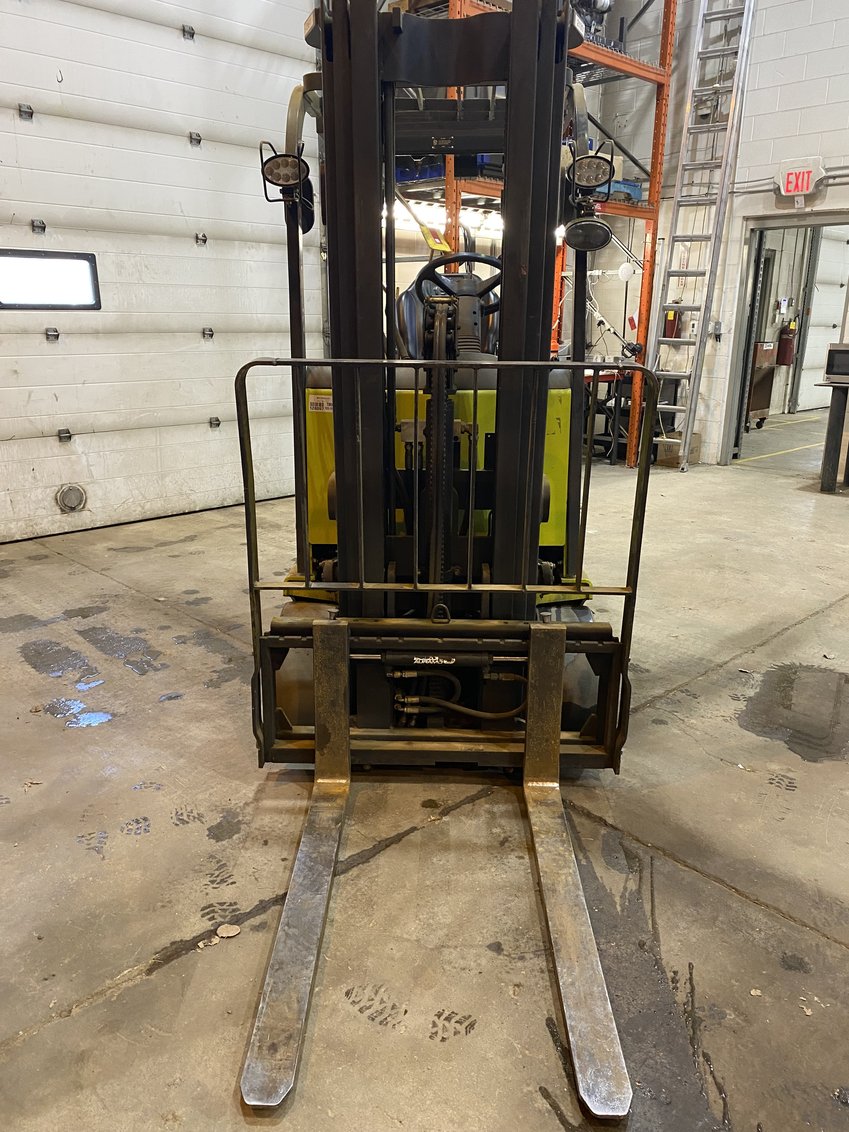

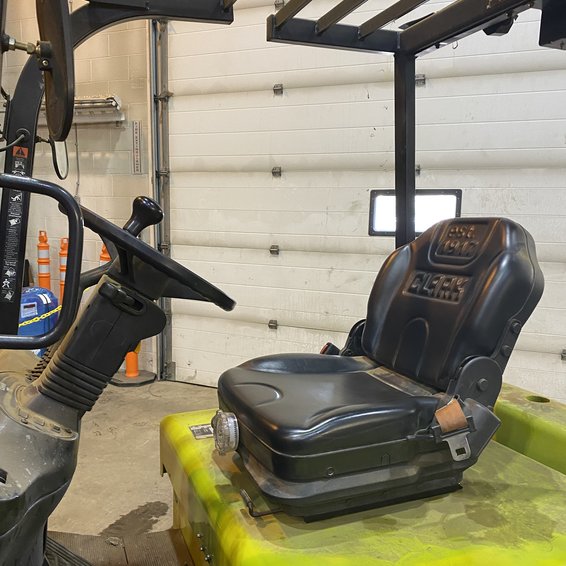

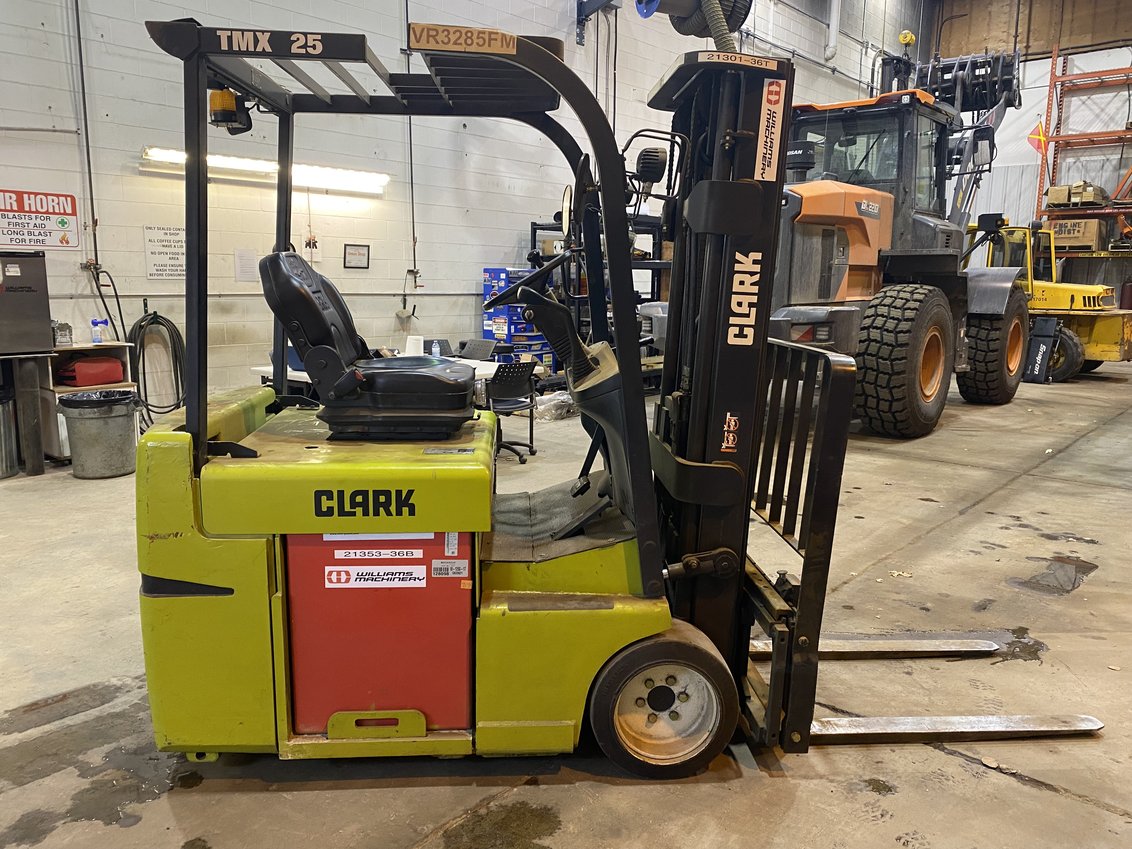

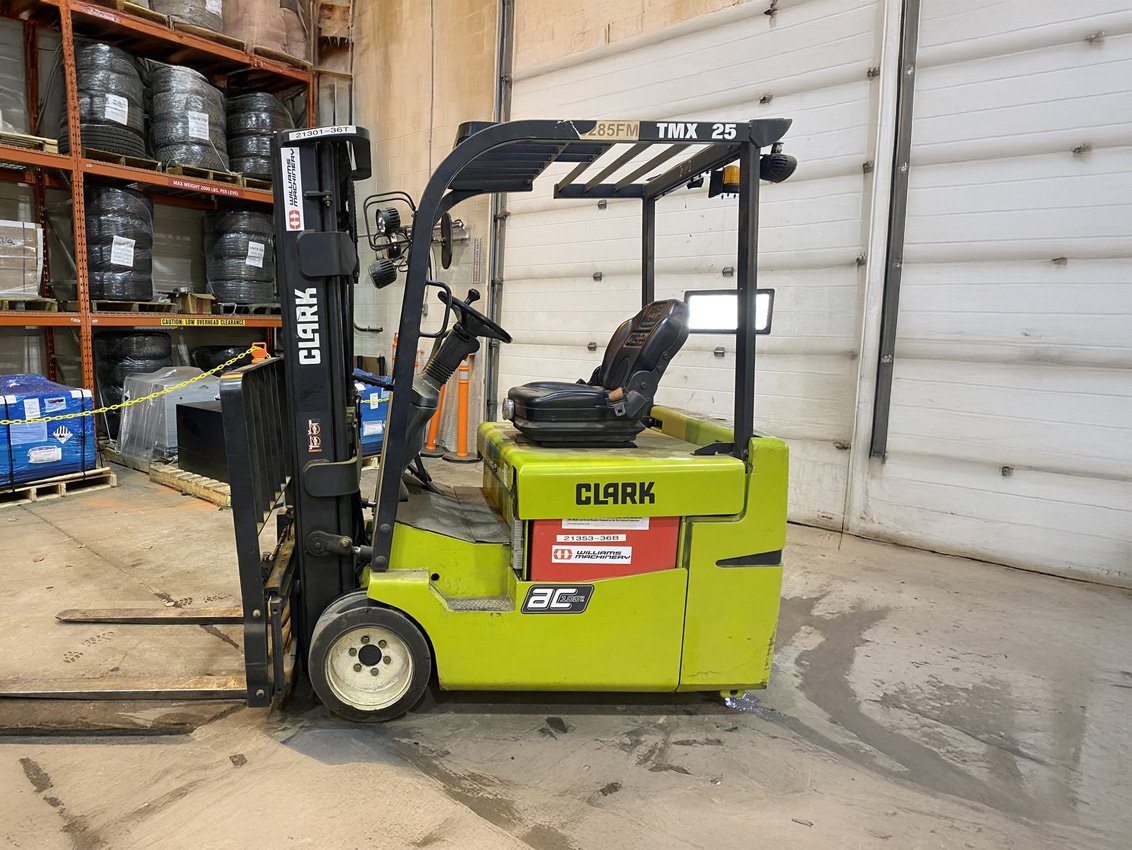

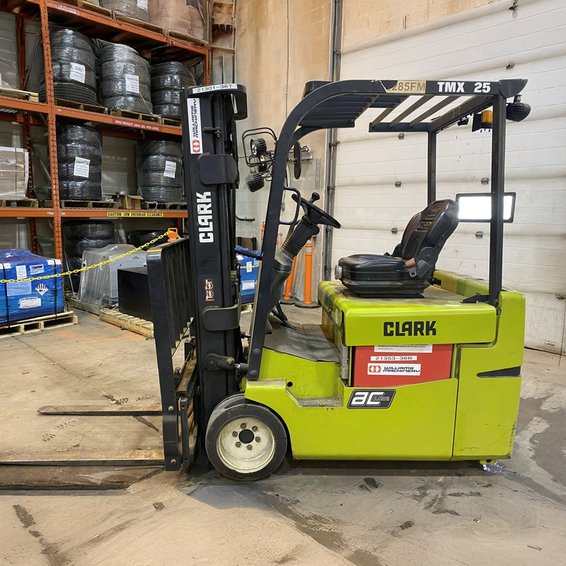

2016 CLARK TMX25
Serial Number: TMX250-3140-9803KF
Engine Hours: 4979
Specifications
| Standard Mast: Free Lift |
59.0
in
|
| Mast |
3-Stage
|
| Maximum Fork Height |
187.0
in
|
| Cable Connection Position |
A
|
| Cable Length |
18.0
ft
|
| Control Type |
AC Control
|
| Drive Motor |
Dual AC
|
| Plug Type |
SB-350 Gray/Blue
|
| Minimum Battery Weight |
2590.0
lbs
|
| Center of Wheelbase |
4.1
in
|
| Maximum Fork Spread |
36.0
in
|
| Min. Aisle Right Ang Stack +LL |
76.1
in
|
| Tread (Front/Rear) |
33.3/ -
|
| Wheelbase |
52.7
in
|
| Height To Top Overhead Guard |
83.0
in
|
| Lowered Overall Height |
83.0
in
|
| Overall Length |
76.1
in
|
| Overall Width |
42.25
in
|
| Front Overhang |
14.4
in
|
| Steer Tire Size |
18 x 6 x 12.12
|
| Drive Tire Size |
18 x 9 x 12.12
in
|
| Load Center |
24.0
in
|
| Capacity |
5000.0
lbs
|
| Max Fork Height Rated Capacity |
170.0
in
|
| Travel Speed Loaded |
7.5
|
