Used Equipment

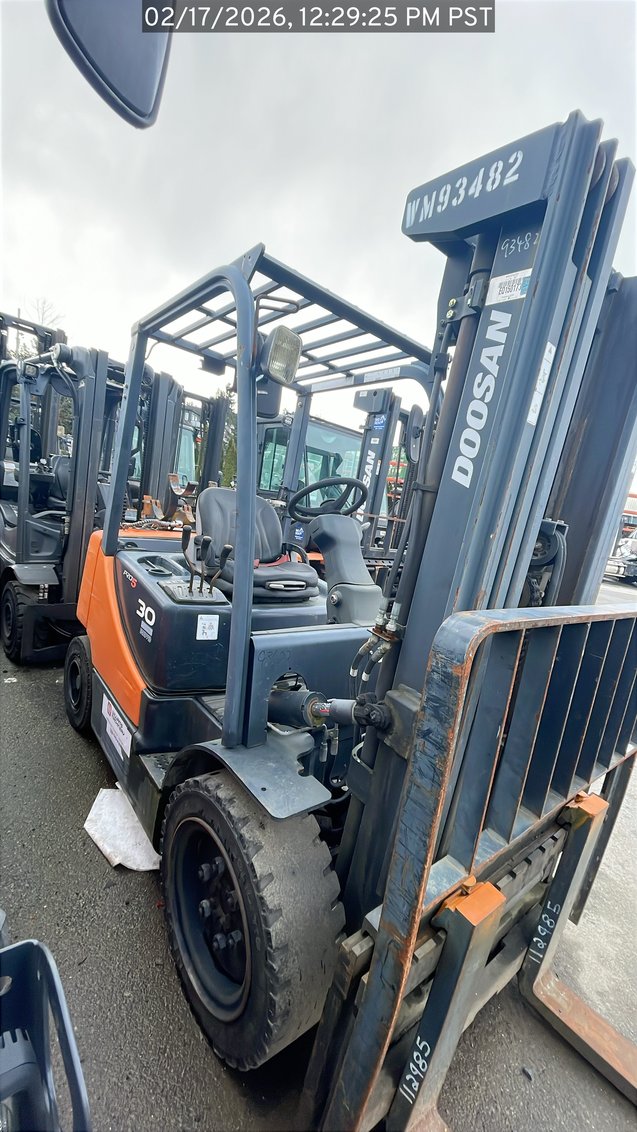

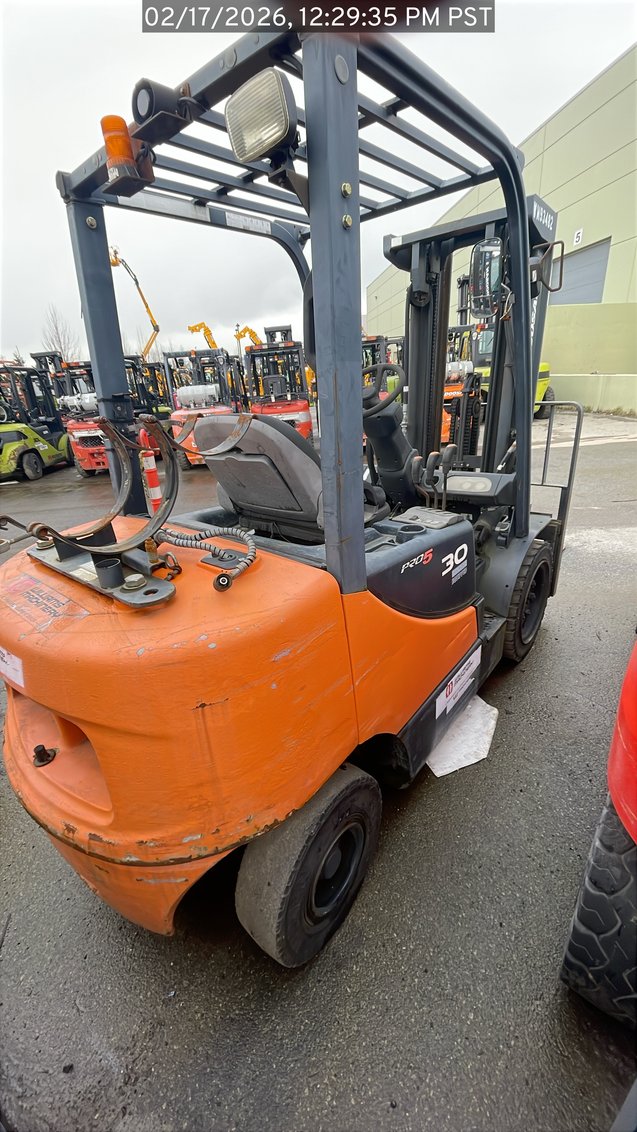

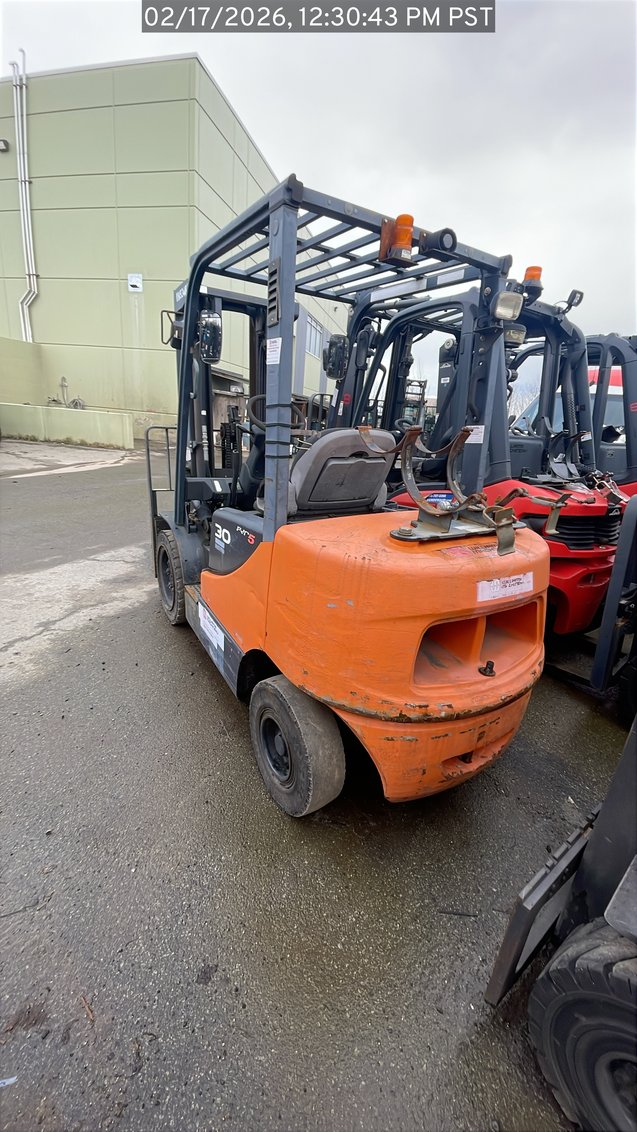

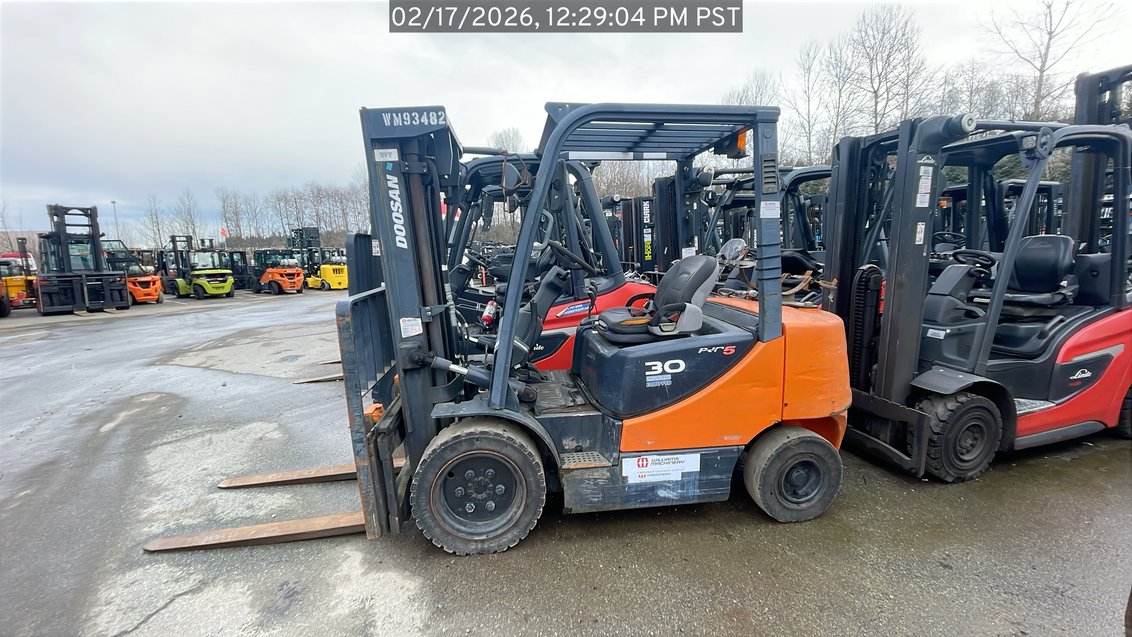

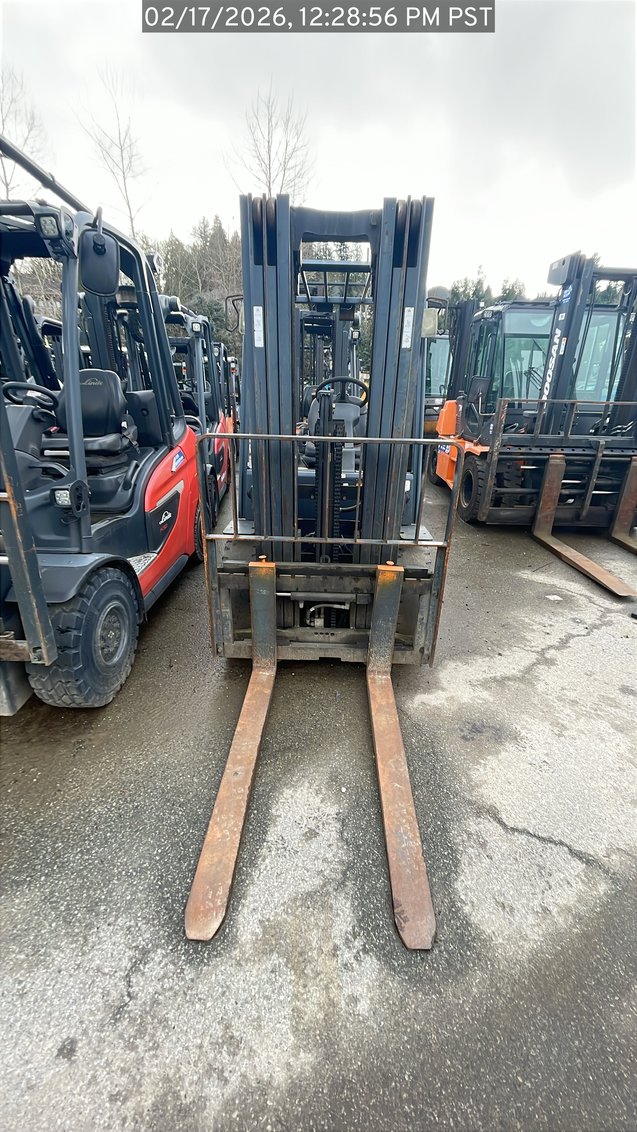

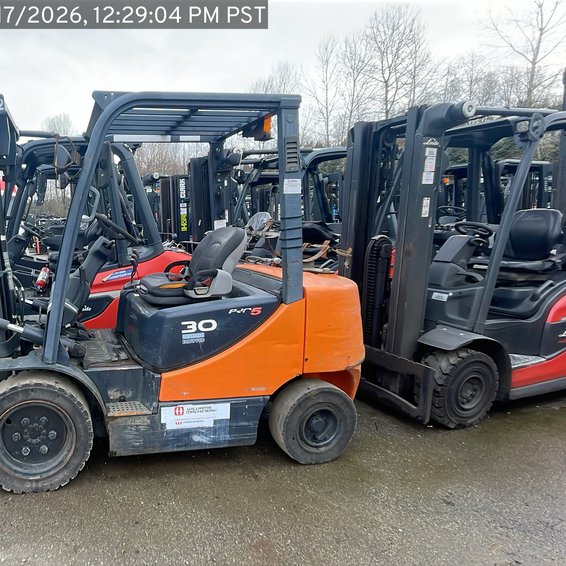

2015 Doosan G30E-5

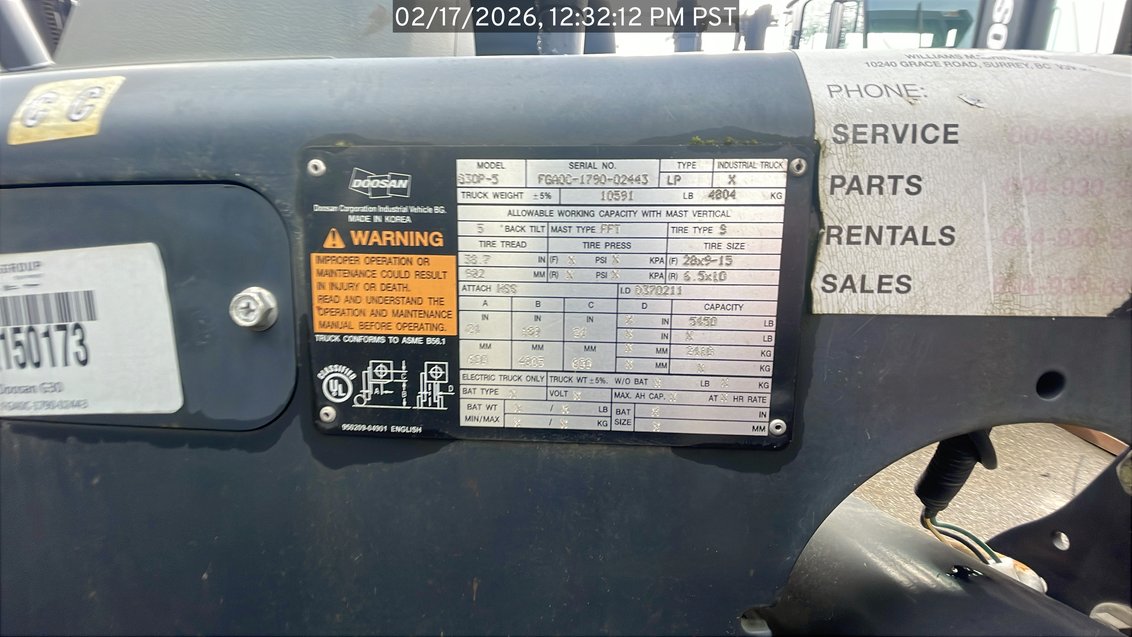

Serial Number: FGA0C-1790-02443
Engine Hours: 4262
Specifications
| Brakes | Wet Disc |
| Relief Pressure Hyd | 3132.0 |
| Lowered Overall Height | 85.2 in |
| Mast | 3-Stage |
| Maximum Fork Height | 127.2 in |
| Standard Mast: Free Lift | 6.0 in |
| Steering | Hydrostatic |
| Number of Speeds | 1/1 |
| Transmission | Powershift |
| Outside Turning Radius | 93.1 in |
| Center of Wheelbase | 5.6 in |
| Fork Size (T x W x L) | 1.8 X 4.9 X 41 in |
| Front Overhang | 19.1 in |
| Height to Top Overhead Guard | 86.0 in |
| Maximum Fork Spread | 41.1 in |
| Minimum Aisle Right Ang Stack | 112.2 in |
| Overall Length | 106.3 in |
| Overall Width | 47.1 in |
| Tread (Front/Rear) | 38.7/39.4 |
| Wheelbase | 66.9 in |
| Lift Capacity | 6000.0 lbs |
| Max Fork Height Rated Capacity | 169.0 in |
| Maximum Drawbar Pull | 3273.0 lbs |
| Travel Speed Loaded | 11.2 mph |
| Gradeability Loaded @ 1 mph | 21.0 percent |
| Load Center | 24.0 in |
| Cylinders/Displacement | 4/143.3 |
| Engine Manufacturer | Mitsubishi |
| Engine Model | G420FE |
| Horsepower | 54.0 hp |
| Power Mode | Gasoline |
| Torque @ RPM | 116.0 ft-lb |
Additional Inventory
| Hours | |
| 2015 Doosan G30E-5 IC Pneumatic Forklift | 4161.0 |
