Used Equipment

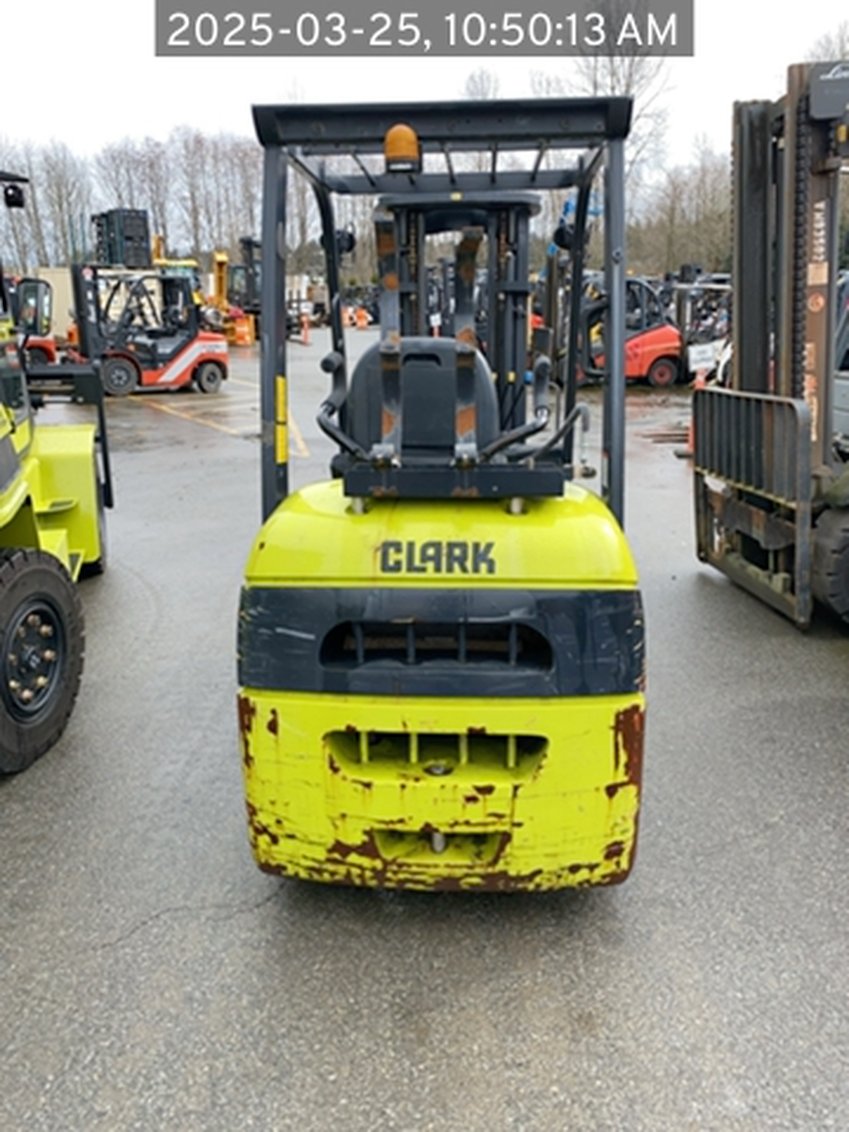

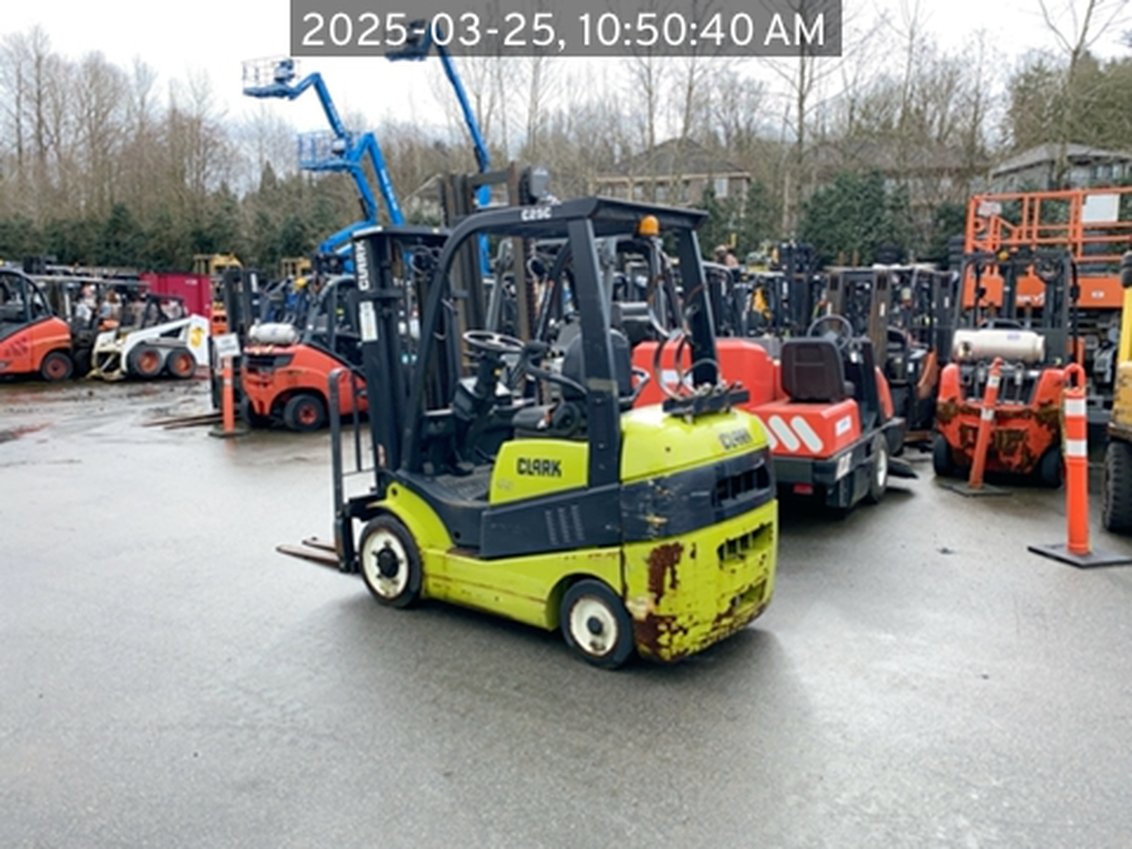

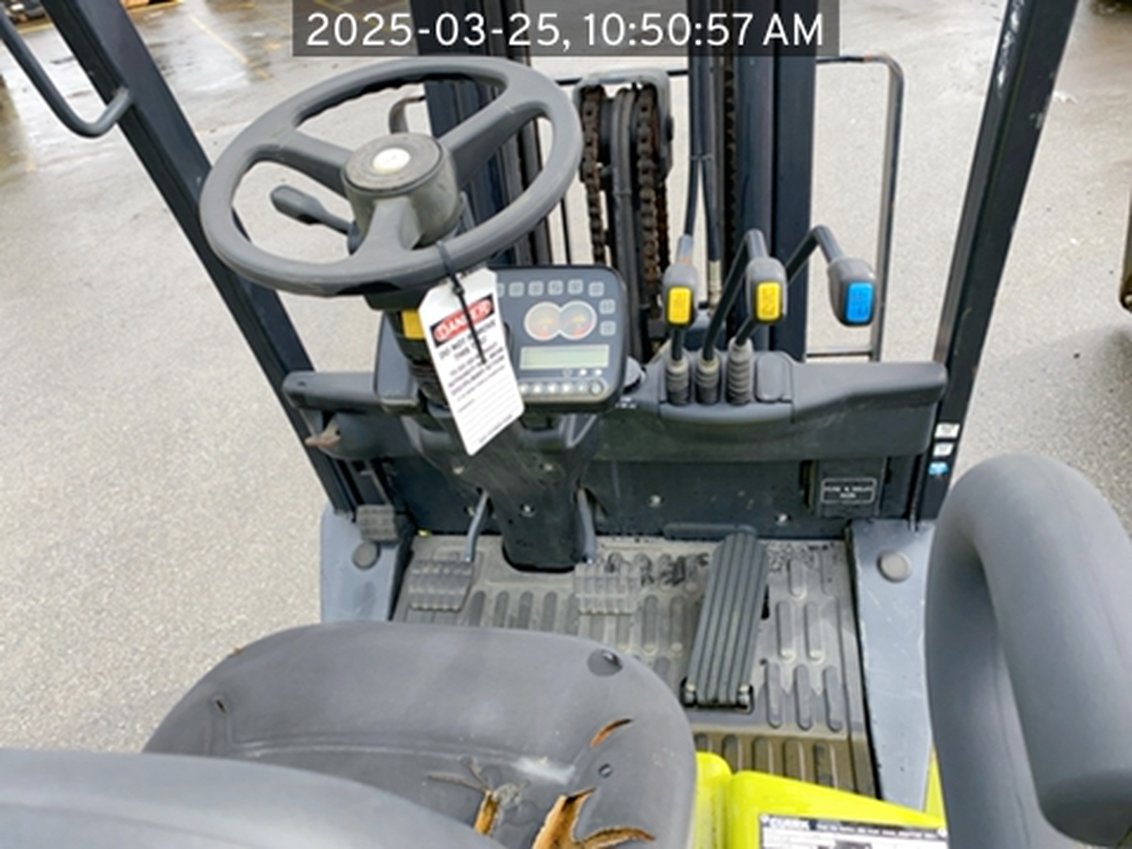

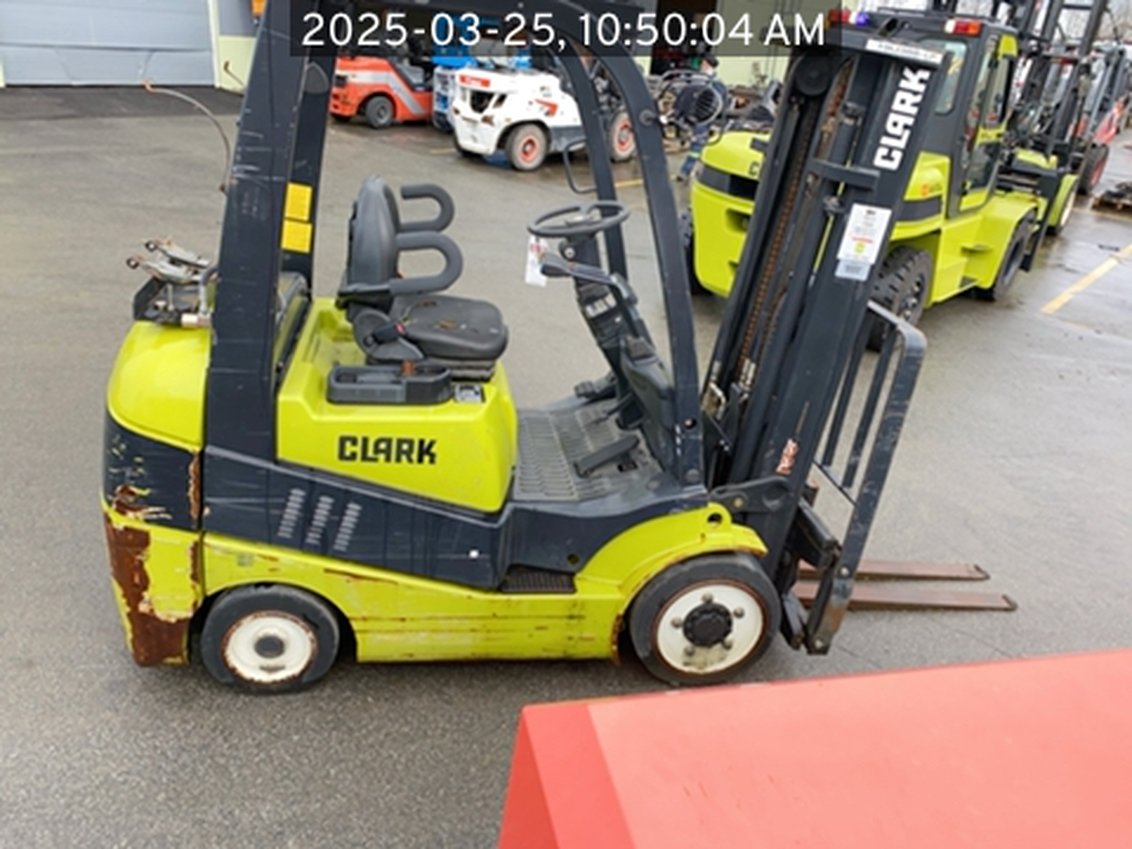

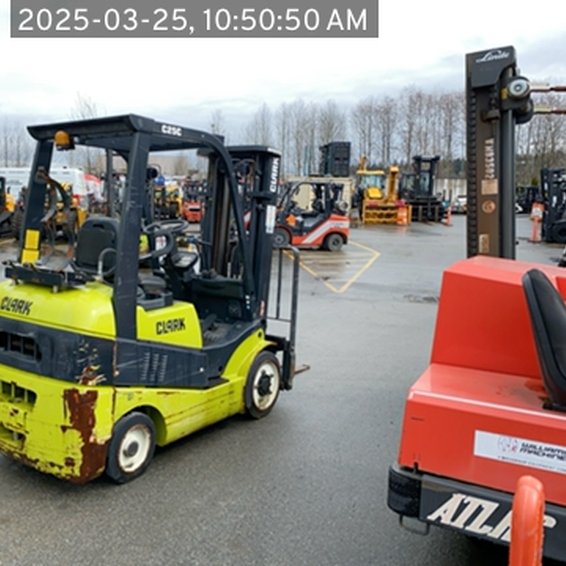

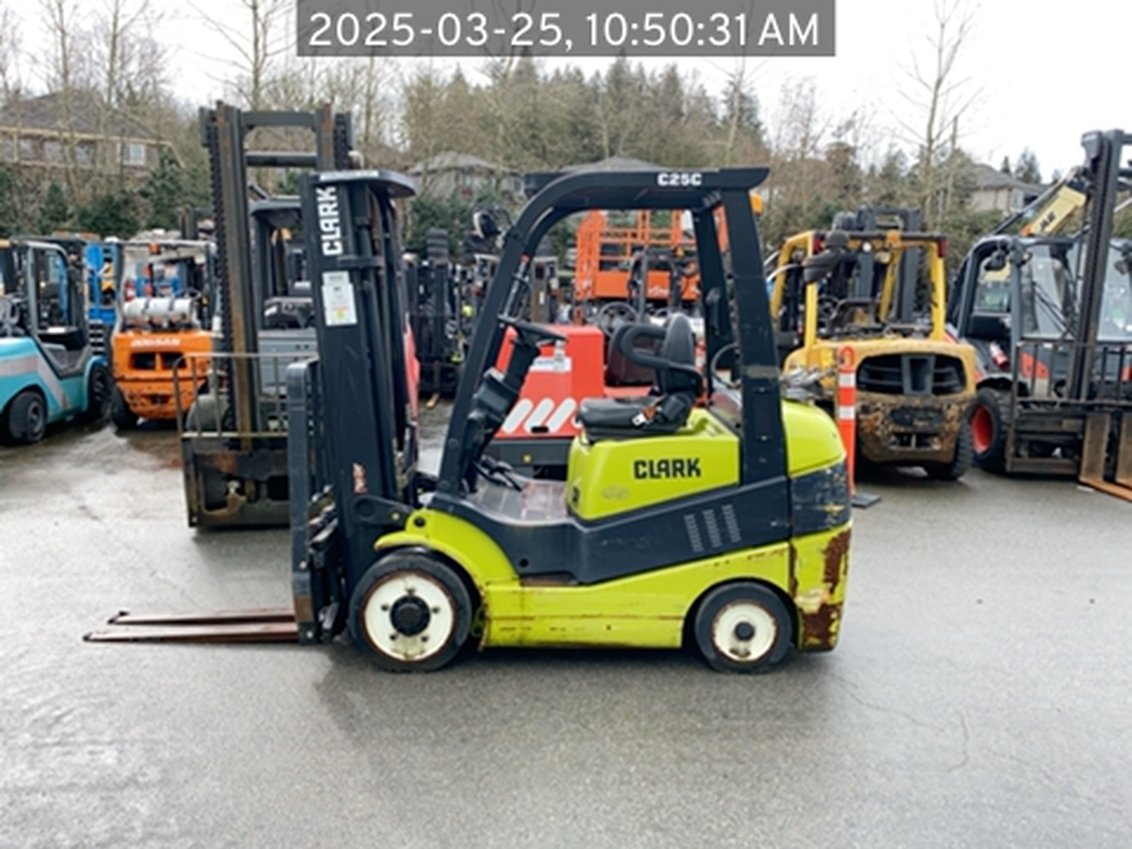

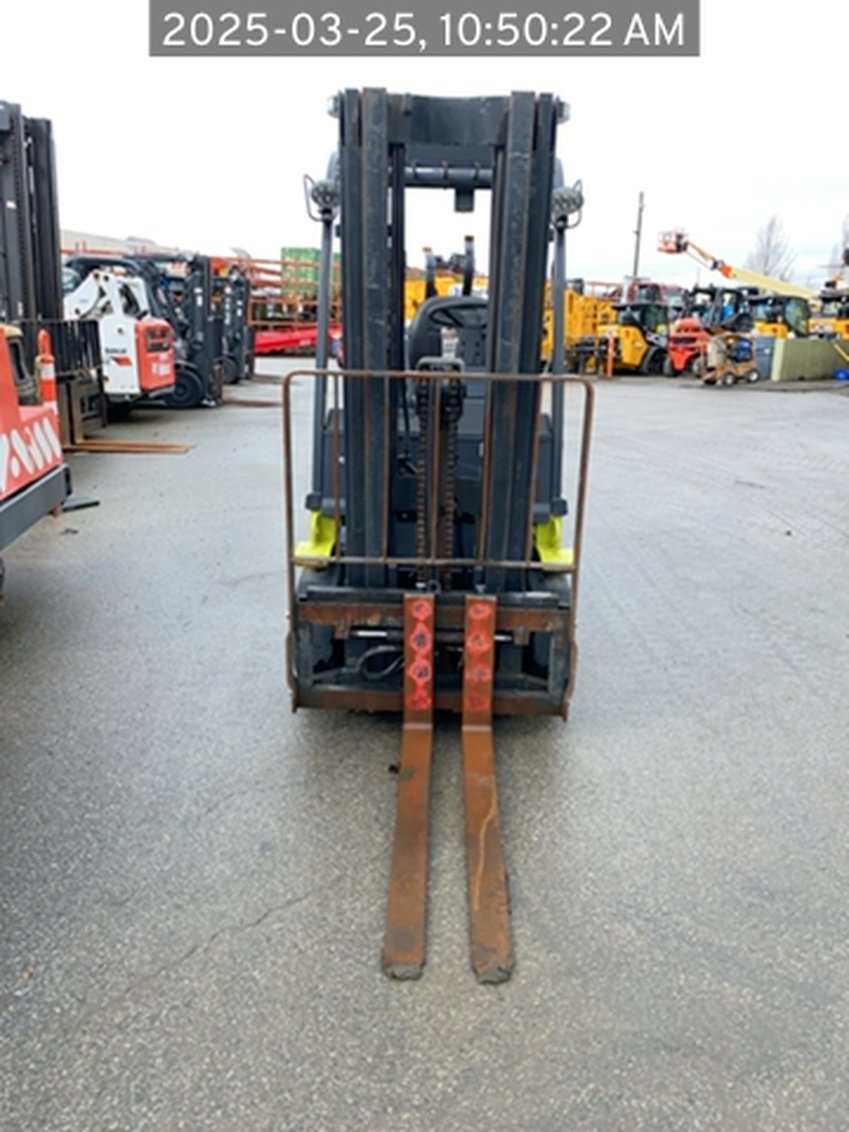

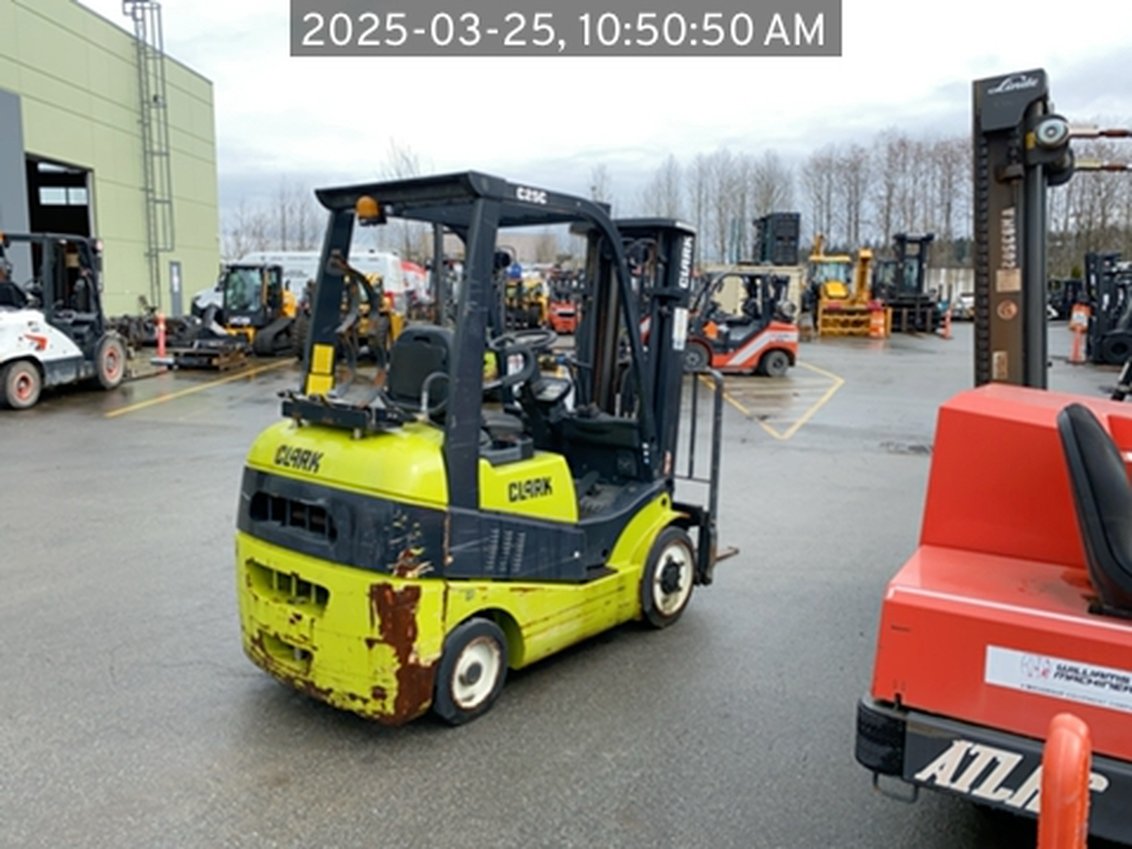

2013 CLARK C25

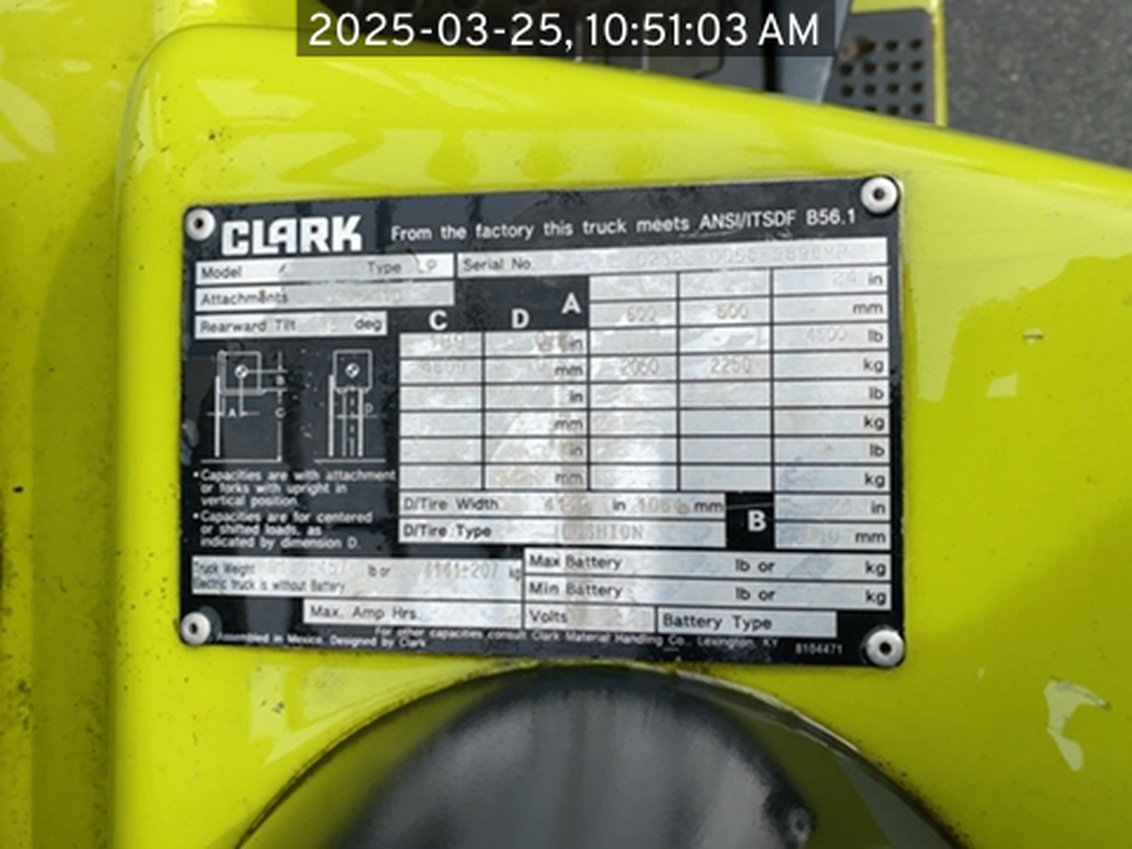

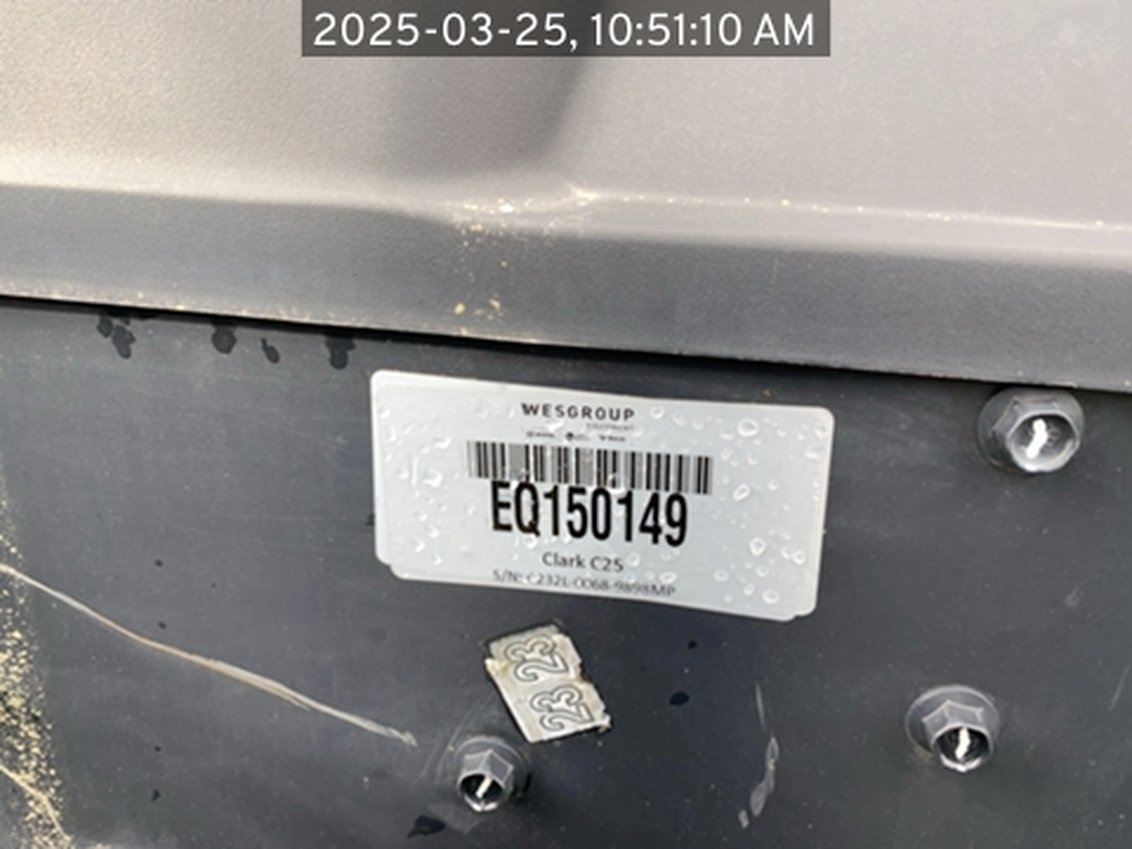

Serial Number: C232L-0068-9898MP
Specifications
Brakes | Drum |
Power Mode | Diesel |
Torque @ RPM | 120.0 ft-lb |
Engine | 4TNV94 |
Horsepower | 59.0 hp |
Engine Manufacturer | Yanmar |
Cylinders/Displacement | 143.0 |
Lowered Overall Height | 85.2 in |
Standard Mast: Free Lift | 59.5 in |
Maximum Fork Height | 189.0 in |
Mast | 3-Stage |
Steering | Hydrostatic |
Transmission | Powershift |
Number of Speeds | 1F/1R |
Fork Size (T x W x L) | 1.75 X 4 X 42 in |
Front Overhang | 17.9 in |
Height to Top Overhead Guard | 85.2 in |
Minimum Aisle Right Ang Stack | 108.5 in |
Overall Length | 100.7 in |
Overall Width | 48.2 in |
Tread (Front/Rear) | 39.1/35.6 |
Wheelbase | 63.8 in |
Center of Wheelbase | 6.1 in |
Steer Tire Size | 6.00 x 9-10PR |
Drive Tire Size | 7.00 x 12-14PR |
Lift Capacity | 5000.0 lbs |
Maximum Drawbar Pull | 4125.0 lbs |
Load Center | 24.0 in |
Travel Speed Loaded | 12.4 mph |
Gradeability Loaded @ 1 mph | 28.2 percent |
Max Fork Height Rated Capacity | 170.0 in |
