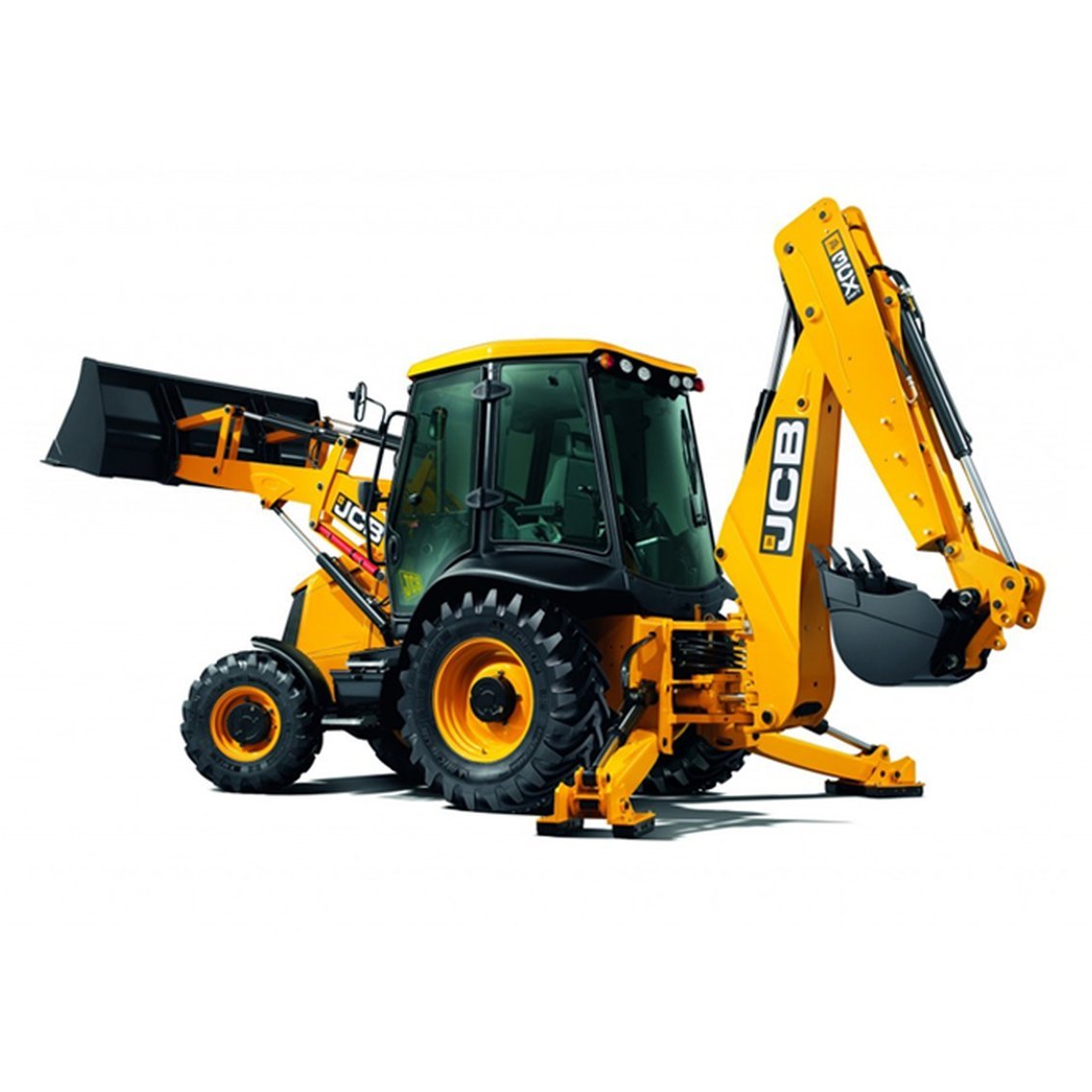

JCB 3CX-14 Backhoe Loader
The 3CX-14 backhoe loader is the result of innovative JCB technologies brought together to extract maximum productivity out of every drop of fuel
A backhoe loader equipped with a powerful engine and state-of-the-art hydraulics that delivers significant fuel savings, lower emissions and quieter noise levels while loading, excavating, idling and traveling on the road.
Specifications
| Loader Breakout Force | 13603.0 lbs |
| Loader Bucket Type | Heavy Duty/BOCE |
| Loader Bucket Width | 92.0 in |
| Backhoe Bucket Breakout Force | 13730.0 lbs |
| Backhoe Bucket Capacity | 7.1 cu ft |
| Backhoe Bucket Width | 24.0 in |
| Backhoe Stick | Extendable |
| Backhoe Stick Force | 8605.0 lbs |
| Load Capacity | 1.4 cu yd |
| Hydraulic Tank Capacity | 22.0 gal |
| Hydraulic System Capacity | 33.4 gal |
| Fuel Tank Capacity | 42.5 gal |
| Pump Flow | 39.0 gal/min |
| Main Relief Pressure | 3650.0 psi |
| Hydraulic Pump | Gear |
| Operator Protection | ROPS/FOPS |
| Steering Type | Hydrostatic |
| Drive | Hydrostatic |
| Number of Speeds | 4F/4R |
| Transmission | Manual |
| Transmission Type | Powershift |
| Height to Top of Cab | 113.0 in |
| Loader Dump Reach | 32.0 in |
| Transport Height | 135.0 in |
| Reach from Swing Pivot | 214.0 in |
| Overall Width | 92.0 in |
| Overall Length | 283.0 in |
| Overall Height (Bucket Raised) | 163.0 in |
| Maximum Operating Height | 212.0 in |
| Loading Reach | 63.0 in |
| Loading Height | 134.0 in |
| Clearance Circle (Bucket Edge) | 409.0 in |
| Ground Clearance | 11.0 in |
| Loader Dump Height | 108.0 in |
| Operating Weight | 15053.0 lbs |
| Rated RPM | 2200.0 rpm |
| Front Tire Size | 14 x 17.5 in |
| Digging Depth - Extended | 222.0 in |
| Digging Depth - Retracted | 175.0 in |
| Lift Capacity at Max. Height | 7670.0 lbs |
| Loader Digging Depth | 2.0 in |
| Engine | 444.0 |
| Engine Model | 3CX-14 |
| Rear Tire Size | 19.5L x 24 in |
| Horsepower | 71.0 hp |
| Engine Manufacturer | Other |
| Power Mode | Diesel |
