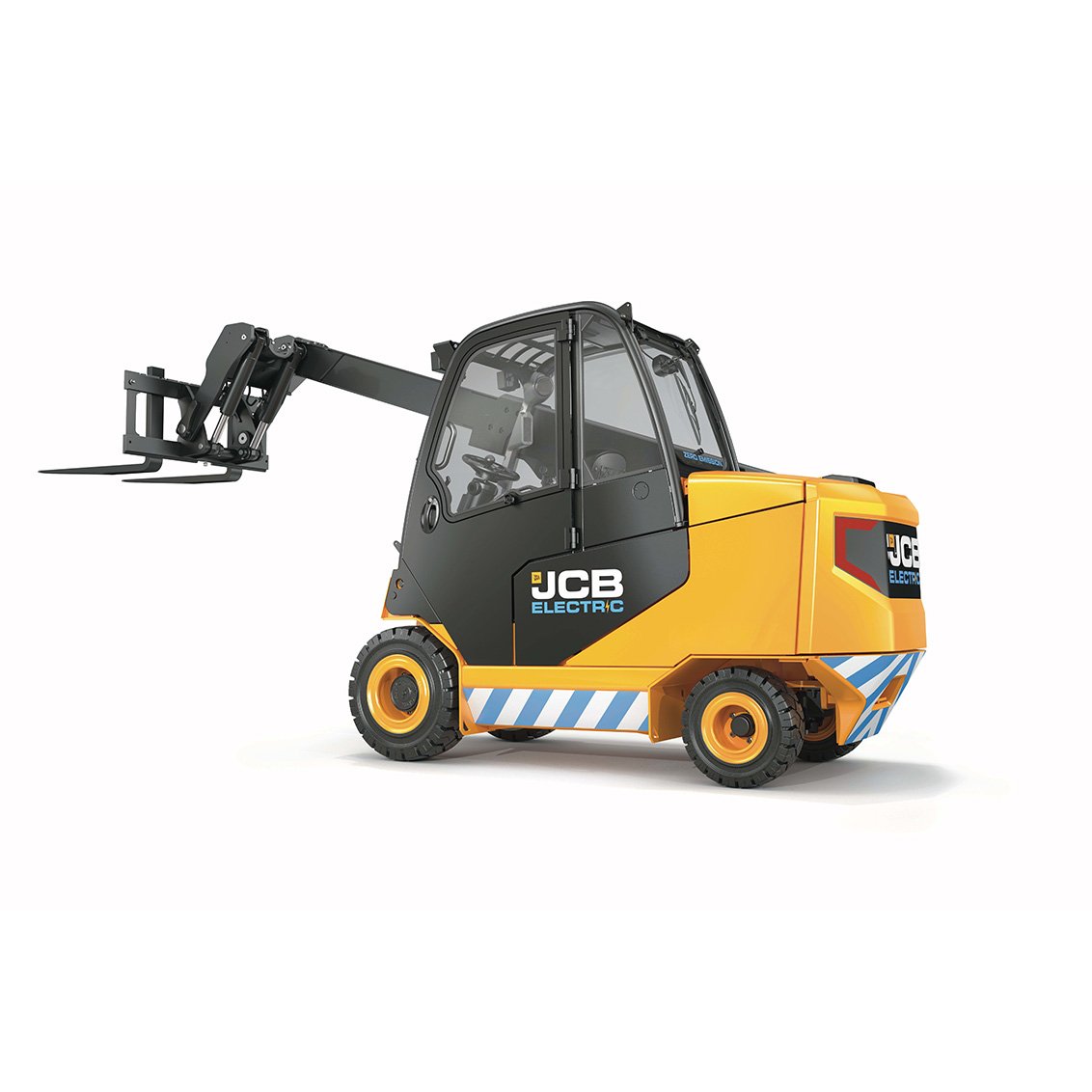

JCB 66-40E Electric Teletruk
JCB E-TECH is a new generation of electric products with zero emissions that do not compromise on equipment performance. JCB is leading the way with zero emissions clean technology and reducing harmful emissions, especially in urban, air quality sensitive environments and indoor spaces.
The electric Teletruk's unique telescopic forward reach, small footprint, turning circle and lift capacity, along with unrivaled visibility, make it an exceptionally versatile machine that has the potential to add significant value to your business.
- Pallets can be loaded easily and safely within 2 minutes.
- Efficient 2-minute battery change.
- Work for a full 8-hour shift on a single charge.
- Unique Load Motion Control feature prevents forward tip.
- 360-degree field of vision around the machine and to the attachment
- Unique 111 degrees of carriage rotation makes handling materials easier and safer.
- Single level control for easier, safer operation.
Specifications
Drive Tire Size | 29 x 10 x 12 in |
Steer Tire Size | 21 x 8 x 9 in |
Maximum Reach | 115.0 in |
Boom Type | 2-Stage |
Maximum Lift Height | 157.0 in |
Power Mode | Electric |
Number of Cylinders | 4.0 |
Rated RPM | 2600.0 rpm |
Maximum System Pressure | 2464.0 psi |
Operator Protection | ROPS/FOPS |
Transmission | Electric |
Maximum Travel Speed | 11.0 mph |
Drive System | 2WD |
Overall Height | 88.0 in |
Overall Length | 119.0 in |
Overall Width | 50.0 in |
Wheelbase | 71.0 in |
Ground Clearance | 6.8 in |
Maximum Boom Angle | 111.0 degrees |
Operating Weight | 11111.0 lbs |
Outside Turning Radius | 100.0 in |
Load Center | 20.0 in |
Max Lift Capacity | 6600.0 lbs |
