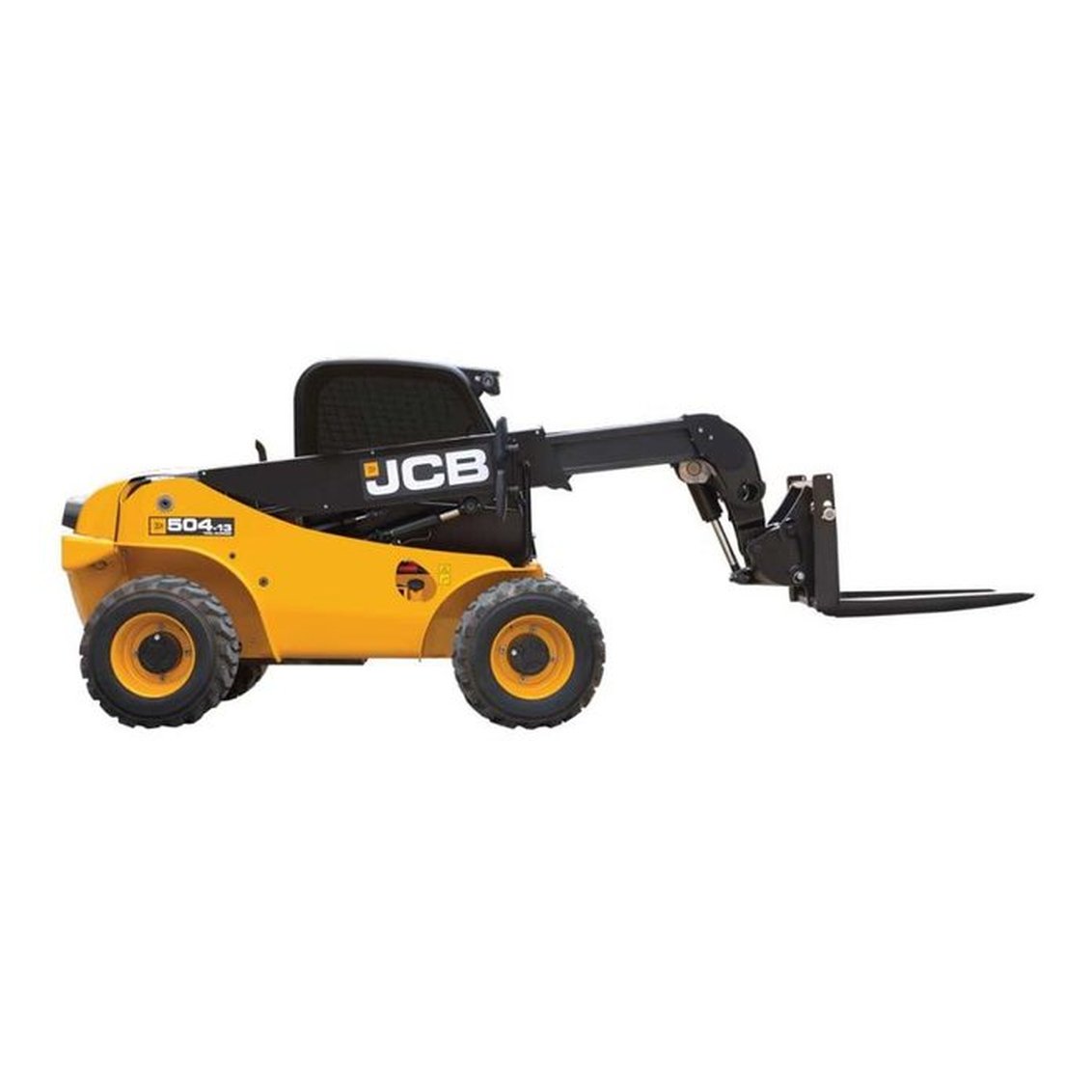

JCB 504-13 Telehandler
Permanent 4-wheel steering and compact size enable an exceptionally tight turning circle for great maneuverability and handling in small spaces. This makes the 504-14 is ideally suited to working in greenhouses to parking garages, rental lots to construction sites.
Specifications
| Maximum Reach | 107.0 in |
| Maximum Lift Height | 159.0 in |
| Fuel Tank Capacity | 16.1 gal |
| Hydraulic Tank Capacity | 8.7 gal |
| Operator Protection | ROPS/FOPS |
| Cab Width | 36.0 in |
| Transmission | Hydrostatic |
| Overall Length | 436.3 in |
| Operating Weight | 9700.0 lbs |
| Overall Height | 255.9 in |
| Overall Width | 200.1 in |
| Wheelbase | 246.1 in |
| Ground Clearance | 11.0 in |
| Power Mode | Diesel |
| Horsepower | 39.0 hp |
| Engine Manufacturer | Perkins |
| Emissions Tier | T4F |
| Engine Model | 403F-E17T |
| Displacement | 103.7 cid |
| Lift Capacity | 4000.0 lbs |
